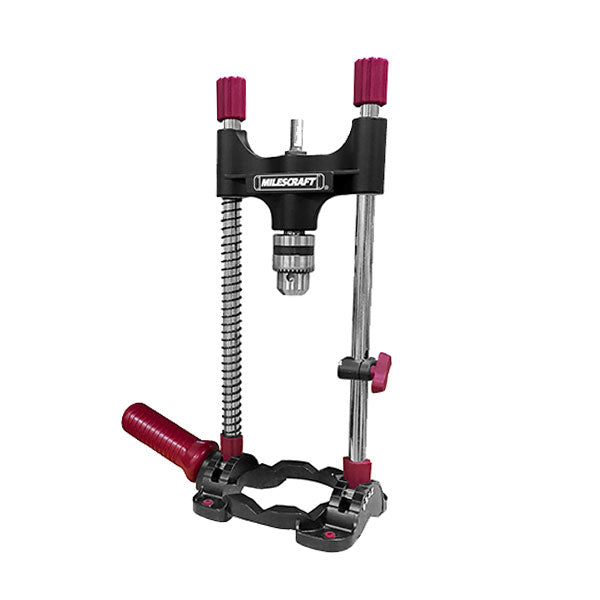

Drill Guide Attachment

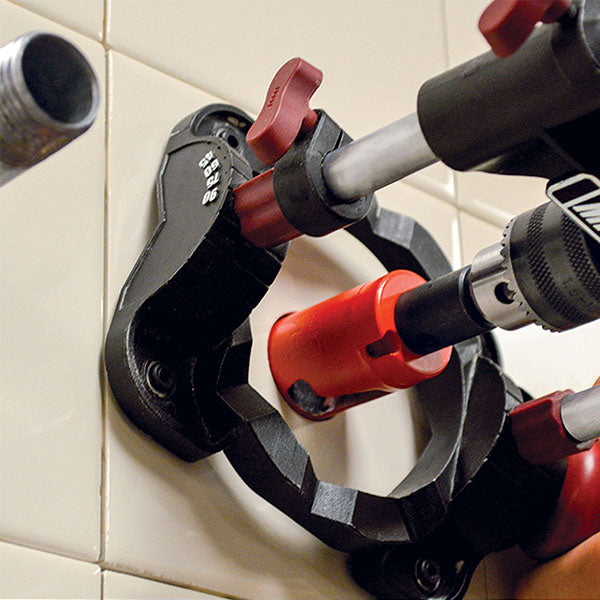

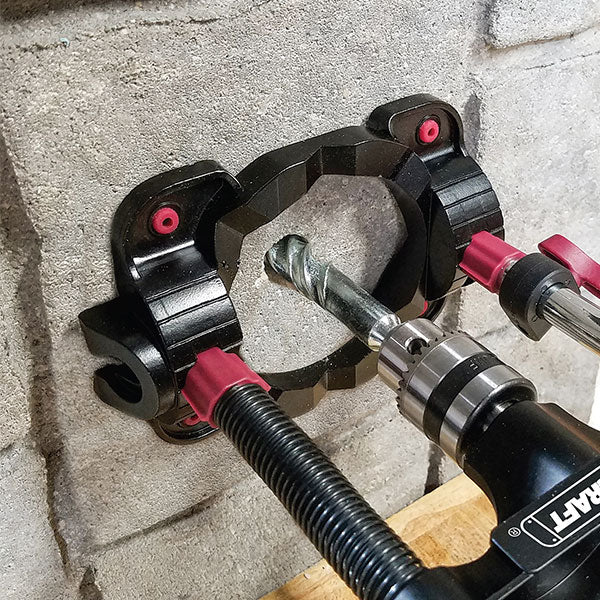

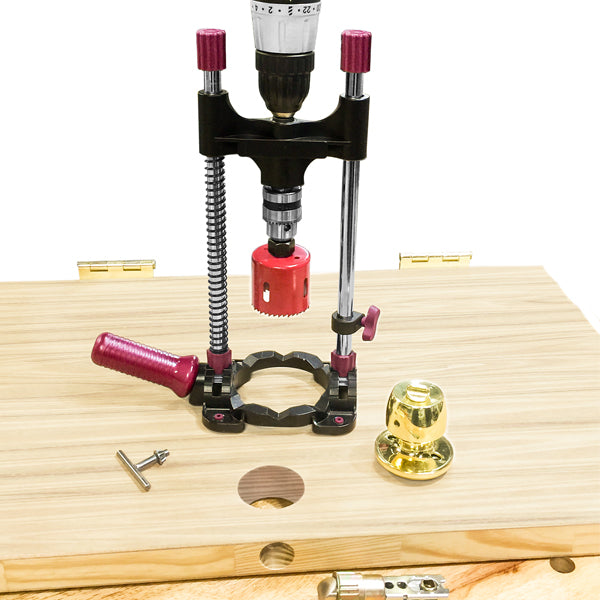

With the Milescraft DrillMate portable drill stand, you can drill straight holes, angled holes, on the edge of a board, or even round stock. Everyone knows that the success of many DIY projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling holes with your standard power drill.

DrillMate Metal Head

• Ball bearings for spindle support

Innovative Metal Base With Angle Readout

• Self-centering drill guide base

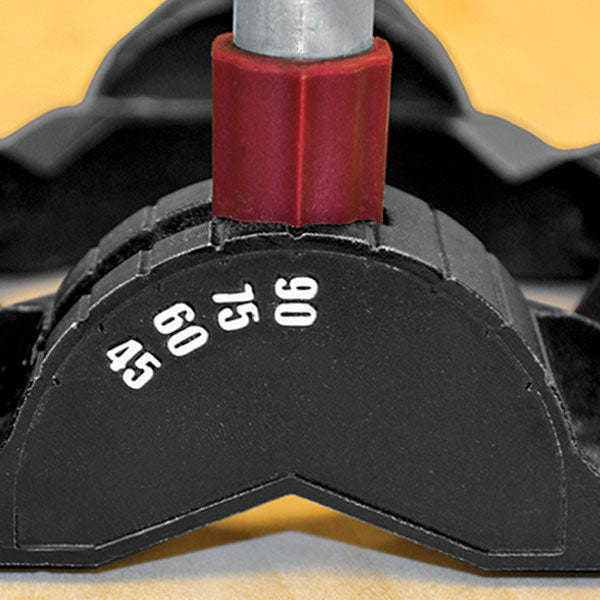

• Angle readout for setting drilling angles to 45°, 60°, 75°, and 90°
• V-groove for drilling on round stock
• Non-slip TPE feet prevent slipping and marring on the work surface
• Mounting holes for mounting with screws when needed

Metal Angle Adjusters

• Allows you to easily lock your selected drilling angle into place

Adjustable Stop Collar

• For repetitive drilling

3/8” Keyed Chuck

• Compatible with most 3/8” drill accessories

Auxiliary Handle

• Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing

*Not intended for use with impact drivers or hammer drills.

*If You Are Looking For Precision That Your Drill Or Drill Press Would Provide, Then We Recommend Purchasing The 1368 DrillMate.

DrillMate Is Recommended By Wood Magazine

WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

Specification:

• Material

  Metal and plastic

• Chuck

  3/8" Keyed

• 3/8" Chuck Thread

  3/8" x 24 thread

• Spindle Shaft Diameter

  .47" (12mm)

• Spindle Shaft Length

  3.66" (93mm)

• Drill Bit Clearance

  Always: Maximum 7.50"

• Drill Head Clearance with Spring and Depth Stop

  Max Travel: 6.30"
  Minimum Drill Bit Length: 1.20"

• Drill Head Clearance without Spring and Depth Stop

  Max Travel: 8.23"
  Minimum Drill Bit Clearance: 0.72"

• Base Dimension

  5.5" (140mm) x 4.25" (108mm)

• Guide Bar Diameter

  .55" (14mm)

• Base Opening

  3-1/2" in diameter

• Inside Distance Between Guide Bars

  3.98" (101.2mm)

• Compatible with

  3/8” and 1/2” power drills

• Weight

  4.13 lbs
