Double Acting Mini Slide
🚚 Ships within 2 days
📦 Ships from our warehouse in Millersburg, Ohio
📞 Questions? Call 1 (800) 920-8066 or Chat Below
Description

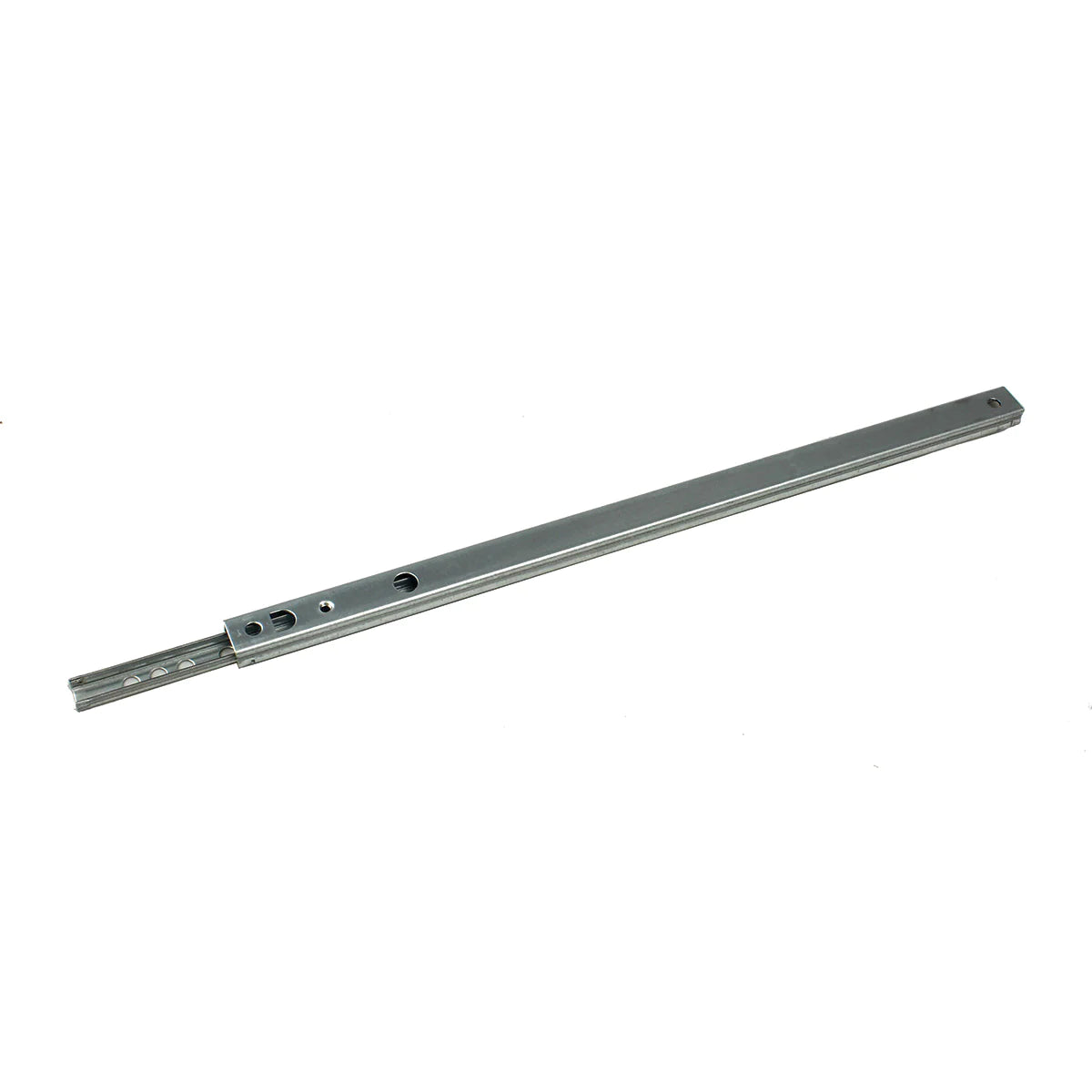

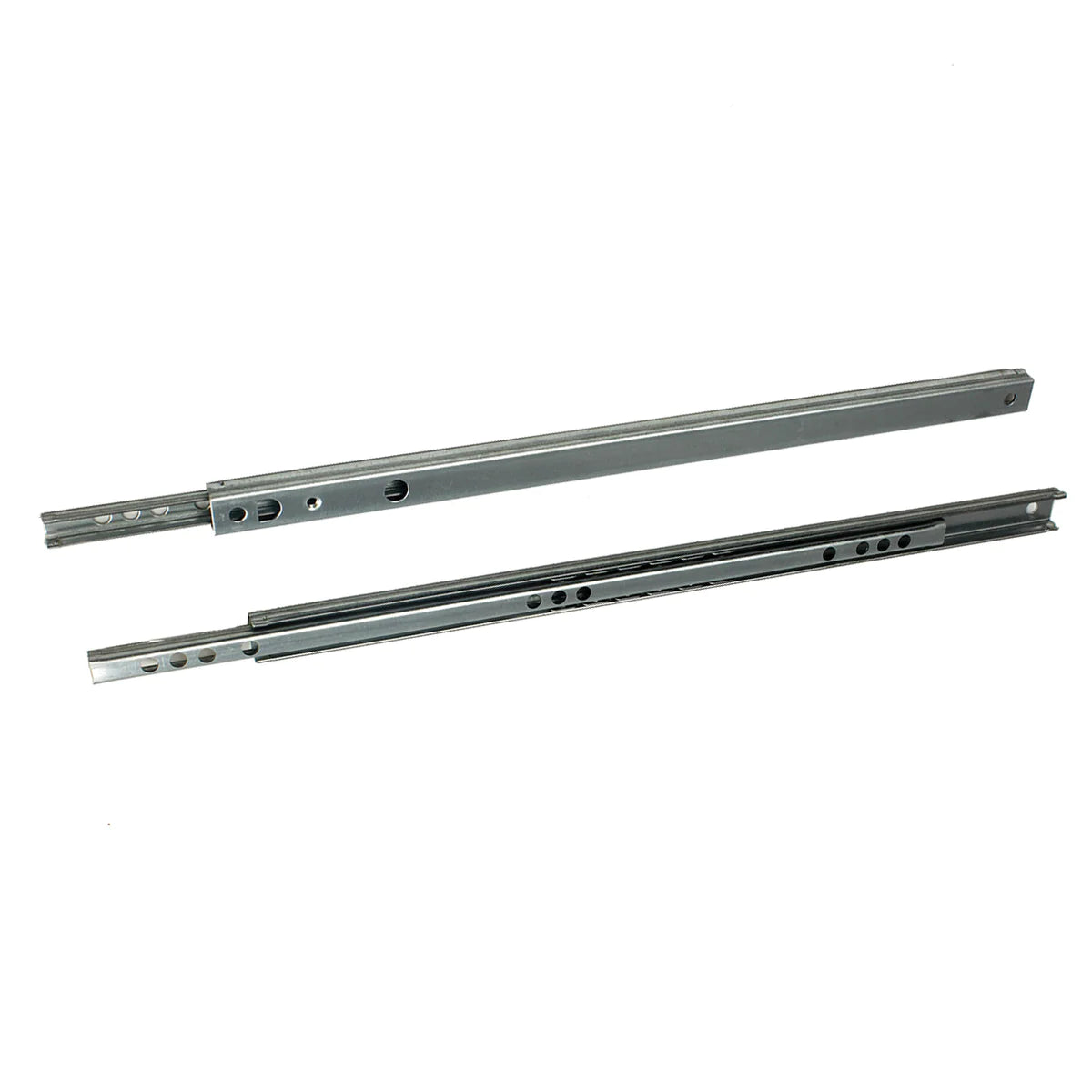

Precision Rolled Steel channels fitted to Steel ball-bearings in a Steel carrier ensure a vibration free, smooth-as-silk rolling action for lighter drawer loads, desk trays, shelves, and computer keyboard pullouts.

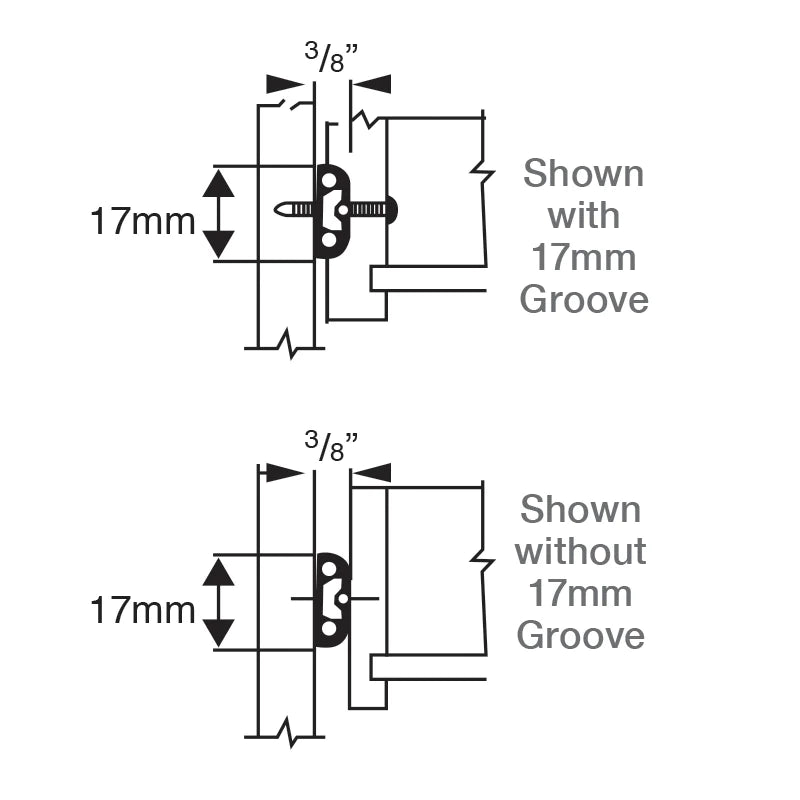

Especially preferred for drawers with 17mm side grooves. All holes on 32mm centers. May be attached with wood screws from the outside or with M4 machine screws from the inside into pre-tapped holes.
No lefts or rights, reversible. Travel exceeds length of slide!
Rated at 22 lbs.
|
Part # |
Drawer Side (Female) |
Cabinet Side (Male) |
Drawer Length |
Length of Travel |
|
DSP8817156 |
156mm |
150mm |
8 1/2" - 10" |
6 1/2" |
|
DSP8817187 |
187mm |
182mm |
10 1/2" - 13" |
8 7/8" |
|
DSP8817219 |
219mm |
214mm |
13 1/2" - 15" |
11 1/2" |
|
DSP8817251 |
251mm |
246mm |
15 1/2" - 17" |
13 7/8" |
|
DSP8817283 |
283mm |
278mm |
17 1/2" - 20" |
16 1/2" |
|
DSP8817310 |
315mm |
310mm |
20 1/2" - 22 1/2" |
19" |
|
DSP8817347 |
347mm |
342mm |
23" - 25 1/2" |
19 1/2" |
|
DSP8817373 |
379mm |
374mm |
24" - 26 1/2" |
21 1/2" |
|
DSP8817450 |
430mm |
424mm |
26" - 28" |
26" |
