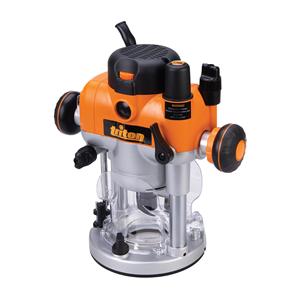

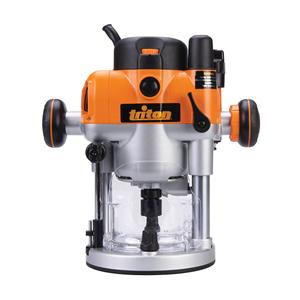

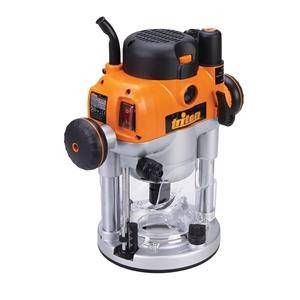

Dual Mode Precision Plunge Router 2400W / 3-1/4hp

SKU 523504
Sold out
Original price $299.99 - Original price $299.99
Original price
$299.99 - $299.99
Current price $299.99

Dual Mode Precision Plunge Router 2400W / 3-1/4hp

Powerful 2400W / 3-1/4hp electronically controlled motor. Single spanner ‘above table’ cutter changing. Automatic shaft lock and power lock-off during cutter change mode. Fast plunge depth adjustment with winder handle and fine depth adjustment with micro winder. Quick switching to conventional plunge mode. Removable plunge spring for easy lifting and adjustment. Effective dust port.

1/2" and 1/4" collet for a greater range of bit fitment
3-1/4hp / 15A motor provides enough power for even the toughest timbers
Automatic spindle lock engages only when power switch cover is closed
Soft start and variable speed provides the perfect speed for all cutter types
Single button switches from plunge to fixed based router with rack and pinion adjustment
Micro winder enables continuous fine depth adjustment through the full plunge range
Rack and pinion height adjustment and table winder eliminates the need for expensive lifting mechanisms when used with router tables
Electronic speed control ensures a fine finish on all materials
Removable plunge spring for easy bit adjustment when table mounted
3-stage turret with direct reading scales for precise pre-set cut depths
Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
Multi-function fence provides optimum control for hand-held use and circle cutting
Quick-fit pins for fast fitment and removal from the fence and RTA300 Router Table
Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
Excellent dust extraction for a cleaner, safer working environment
Easy access brushes allows the end user to change worn brushes
Single wrench bit change through the base is achieved with the automatic spindle lock

Safety Switch Shutter locks closed in bit-change mode to prevent router being switched on


Depth Adjustment Micro winder
Electronic Speed Maintenance Yes
No Load Speed 8000-21000rpm
Plunge Range 0 - 2 3/5"
Power 3-1/4hp / 15A
Power On Indicator Neon
Product Height 12 1/4"
Product Length 7 1/8"
Product Weight 14.33lb
Product Width 11 3/4"
Safety Power Switch Yes
Sound Power LW 100.8dB
Sound Pressure LP 89.8dB
Speed Maintenance Under Load 8000 - 21,000rpm
What's in the box - 01 1 x TRA001 2400W Plunge Router
What's in the box - 02 1 x Table Winder
What's in the box - 03 1 x Collet 1/4"
What's in the box - 04 1 x 12mm Collet
What's in the box - 05 1 x Multi-Function Fence
What's in the box - 07 1 x Instruction Manual

Included accessories

Table height winder
Multi-function fence
1/4" collet
1/2" collet

Customer Reviews

Based on 2 reviews
Geoffrey Stenta

Fantastic experience overall. The router is a beast.

Kevin Kosiak
So far so good

Installing the router today on my custom router table with a Kreg router plate.

Shipping from Bear Hollow was flawless and the Triton 3 1/4 HP dual mode router arrived in perfect shape.

I will update my review after router is installed and I've had a chance to use it some.
