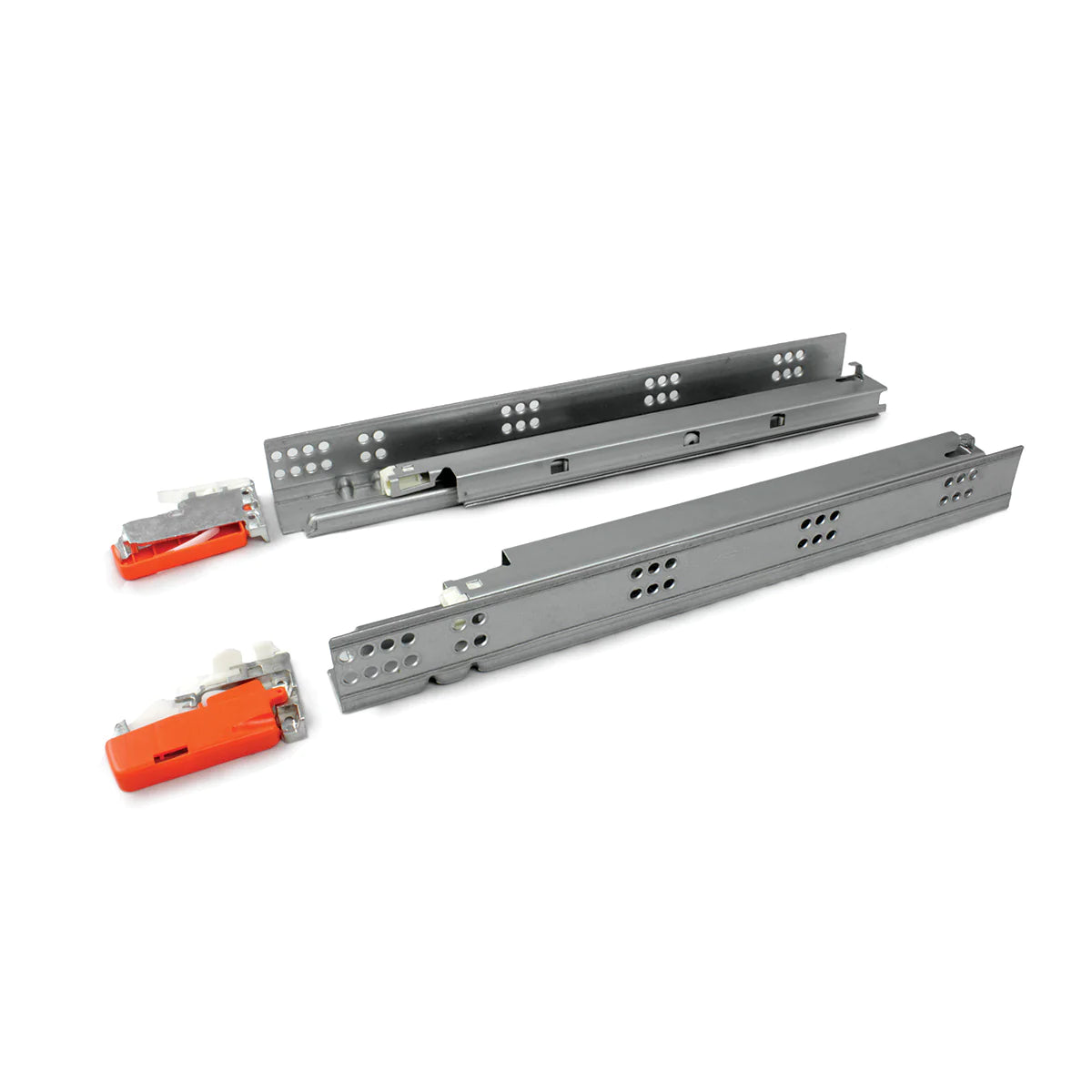

Full-Extension Soft Close Undermount Drawer Slides
📞 Questions? Call 1 (800) 920-8066
- Ships within 2 days | Delivers Dec 16 - Dec 20
We are located and ship all orders from Fredericksburg, Ohio
Description
Cabinet member is fastened to sidewall with round head screws. No screws are used on the drawer! A 6mm hole is drilled into the drawer back. The drawer is installed effortlessly by fitting on to the adjustable frontal clips. The frontal pin fastens the drawer for opening and closing while a rear bracket (optional) prevents tipping.
Installing or removing the drawer takes just a matter of seconds.
Slides are equipped with spring assist self closing, soft closing action. The drawers finish closing by themselves effortlessly and stay closed.
No Steel ball bearings! No noise! Hidden out of sight underneath drawer. Movement controlled horizontally and vertically with Nylon rollers.
- Low in price.
- Surprisingly economical!
- Rated 55 lbs on 18" length.
- Easy Installation.
- Silent, Smooth

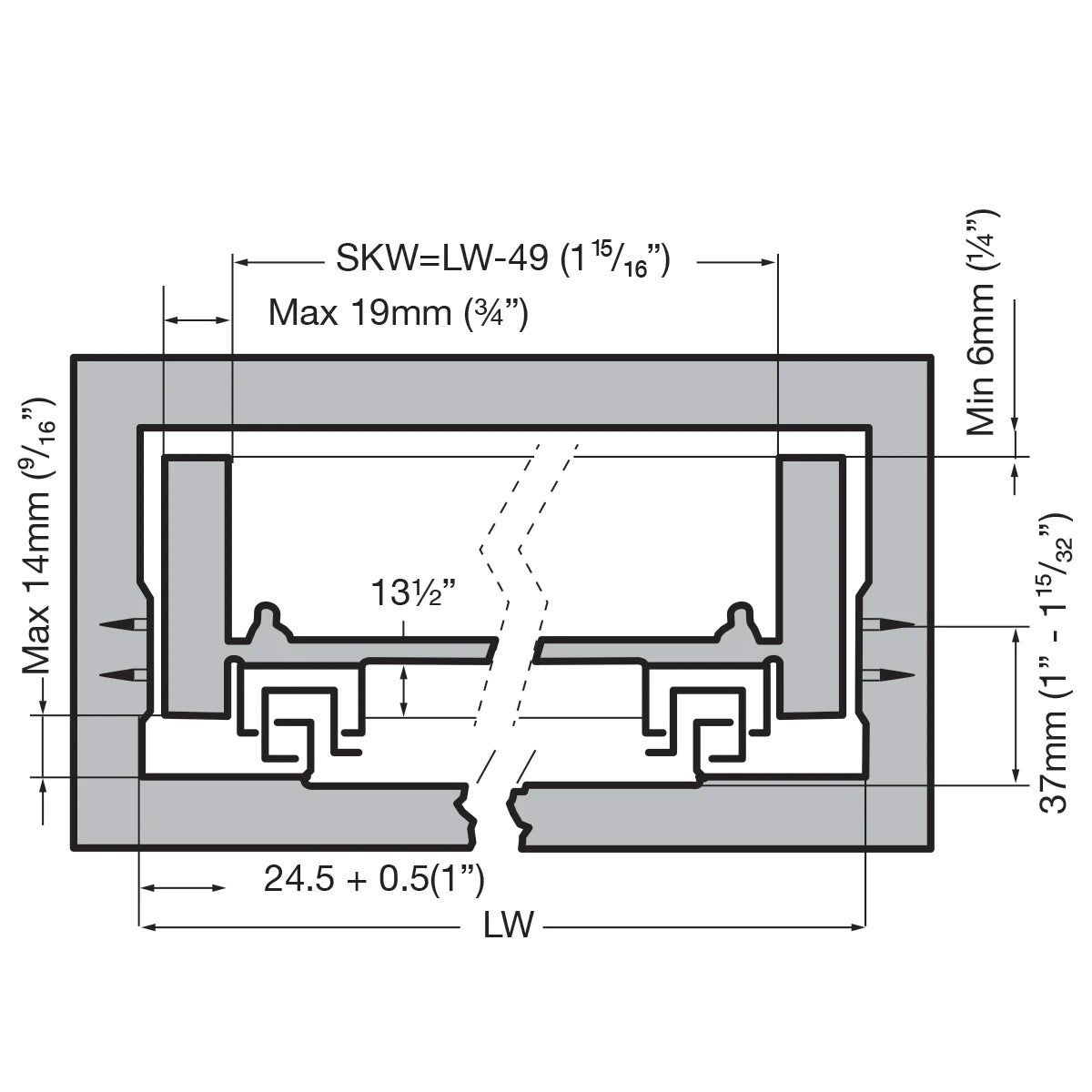

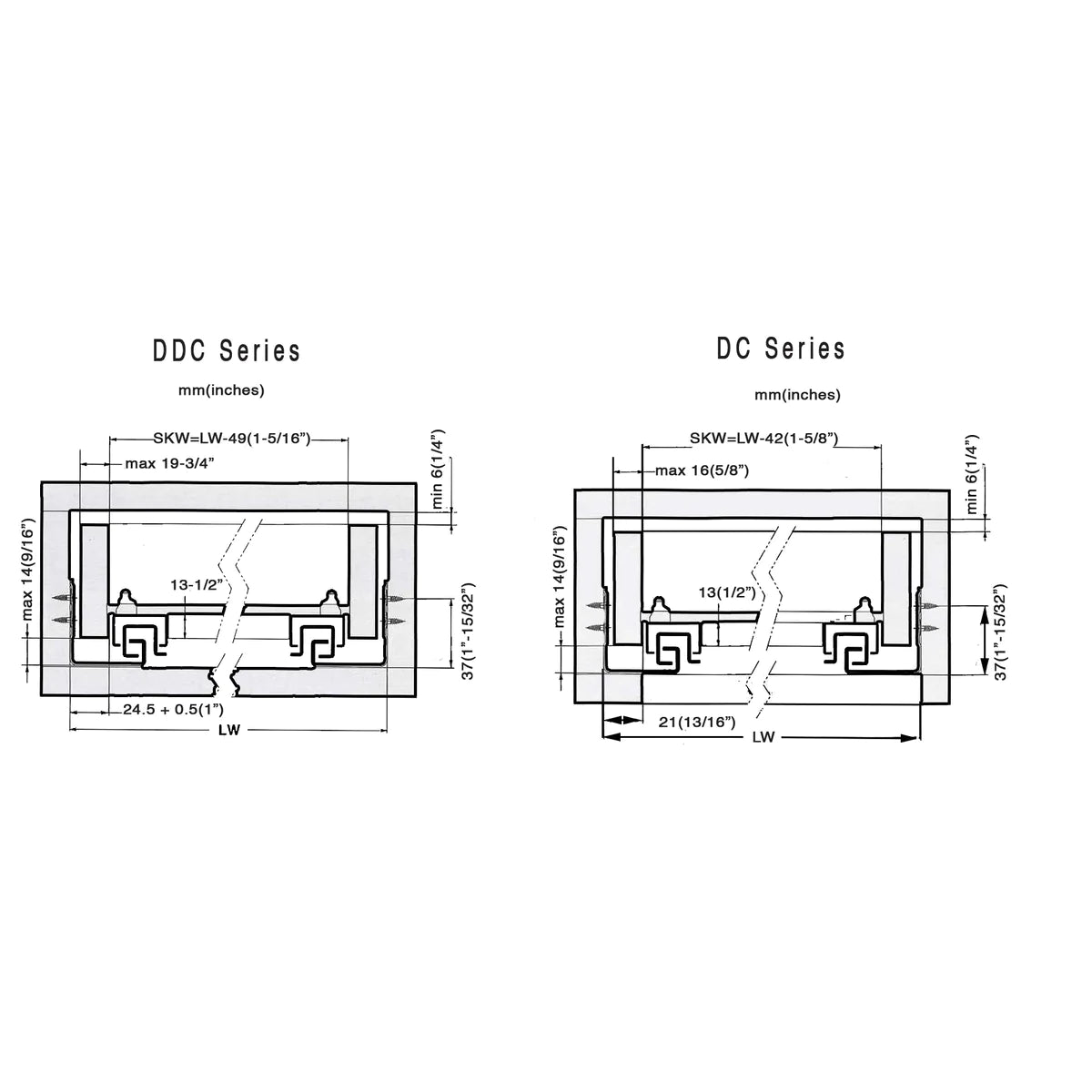

Install front of slide 1/2" from front edge and place screw in the second hole (this is automatically 37mm from the front edge). Rear holes fall automatically into 32mm segments if 32mm boring machines are used!
Max Sidewall Thickness: 19mm (3/4")

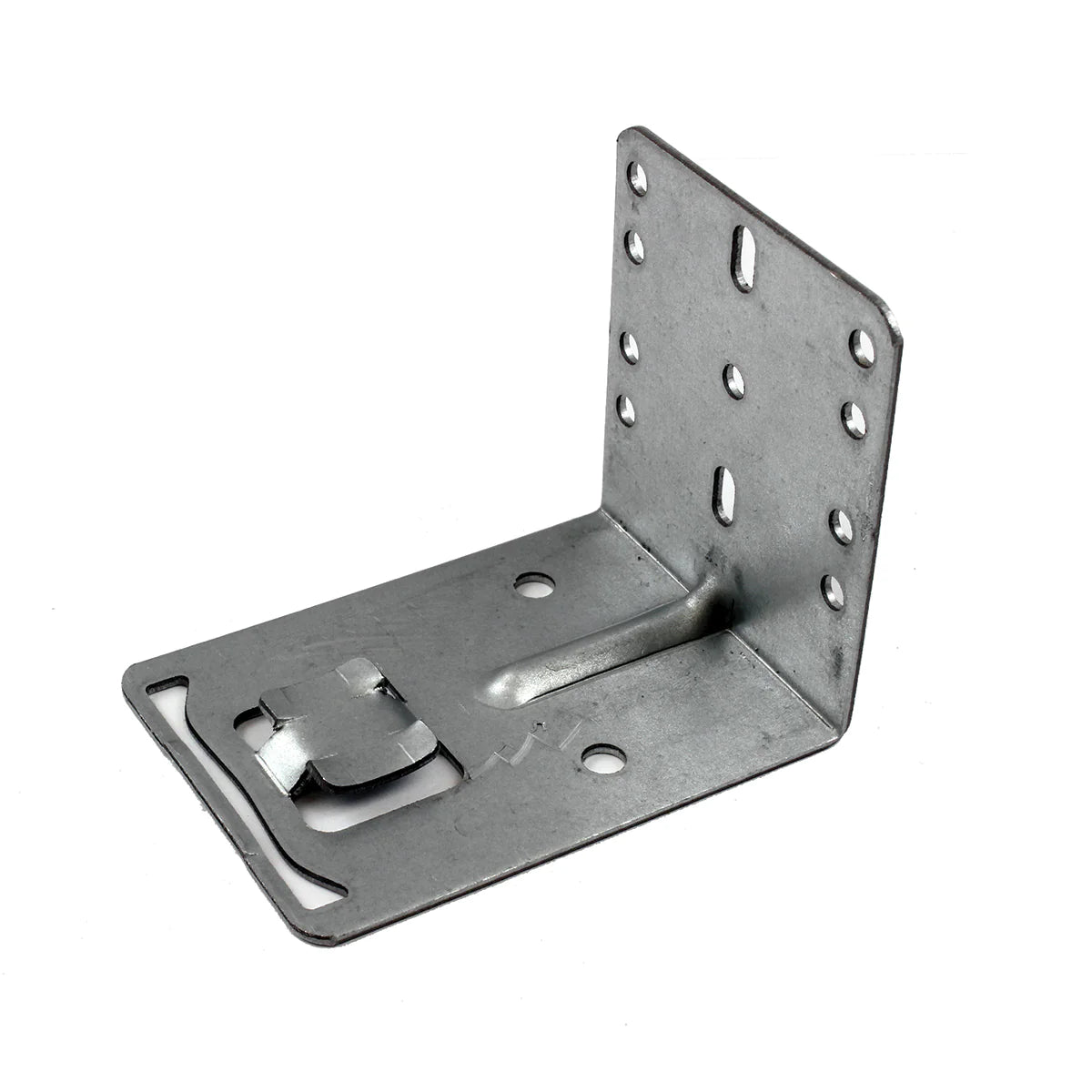

Works with the DC001 rear bracket.
| Part # | Drawer Length | Runner Length | Min Cab Dept | Max Sidewall Thickness |
| DC305 | 305mm (12") |
317mm (12 1/2") |
326mm (127/8") |
19mm (3/4") |
| DC381 | 381mm (15") |
394mm (15 1/2") |
403mm (15 7/8") |
19mm (3/4") |
| DC457 | 457mm (18") |
470mm (18 1/2") |
479mm (18 7/8") |
19mm (3/4") |
| DC533 | 533mm (21") |
546mm (21 1/2") |
555mm (21 7/8") |
19mm (3/4") |
