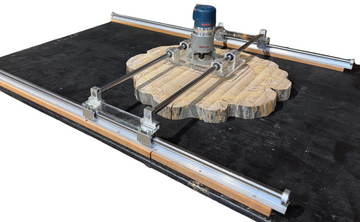

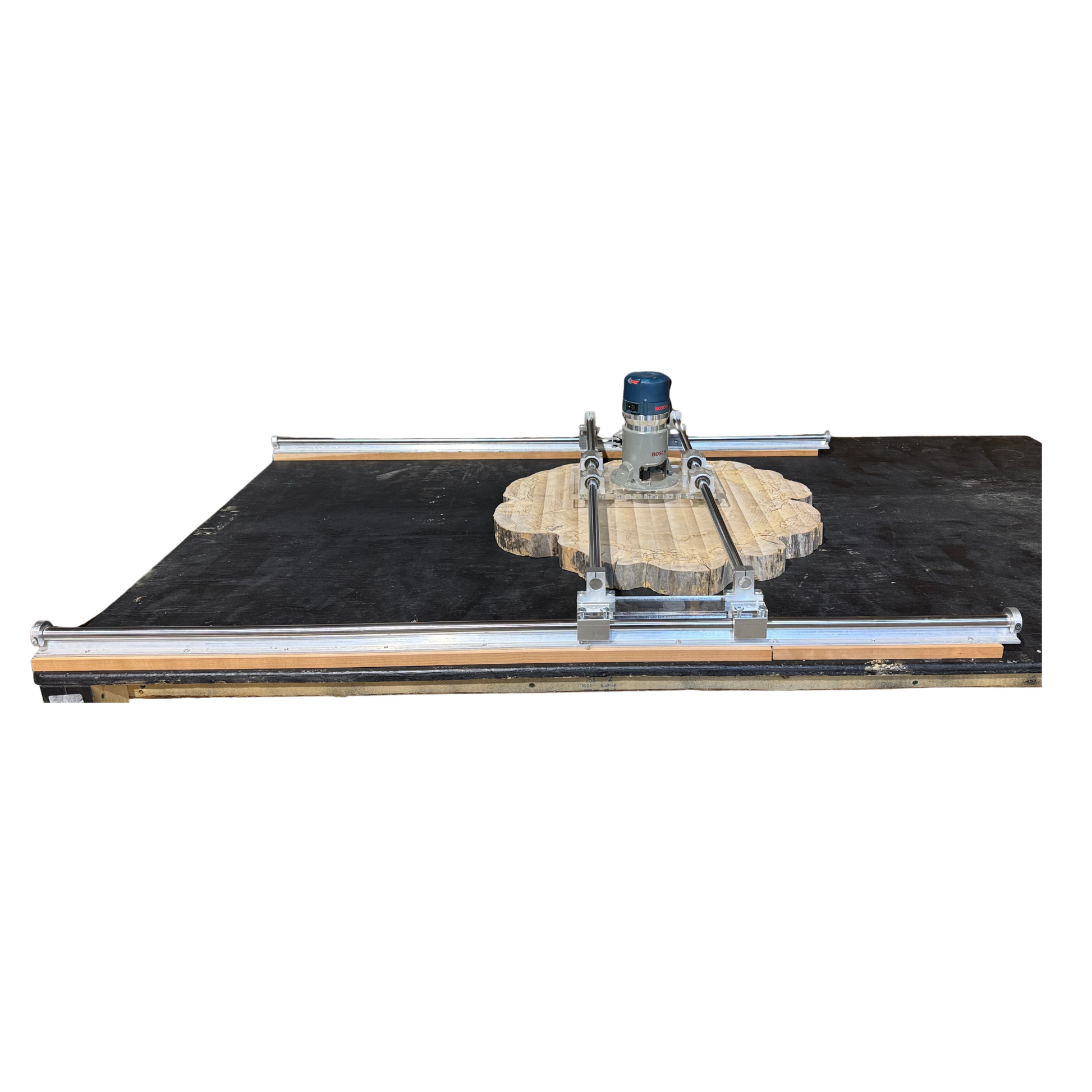

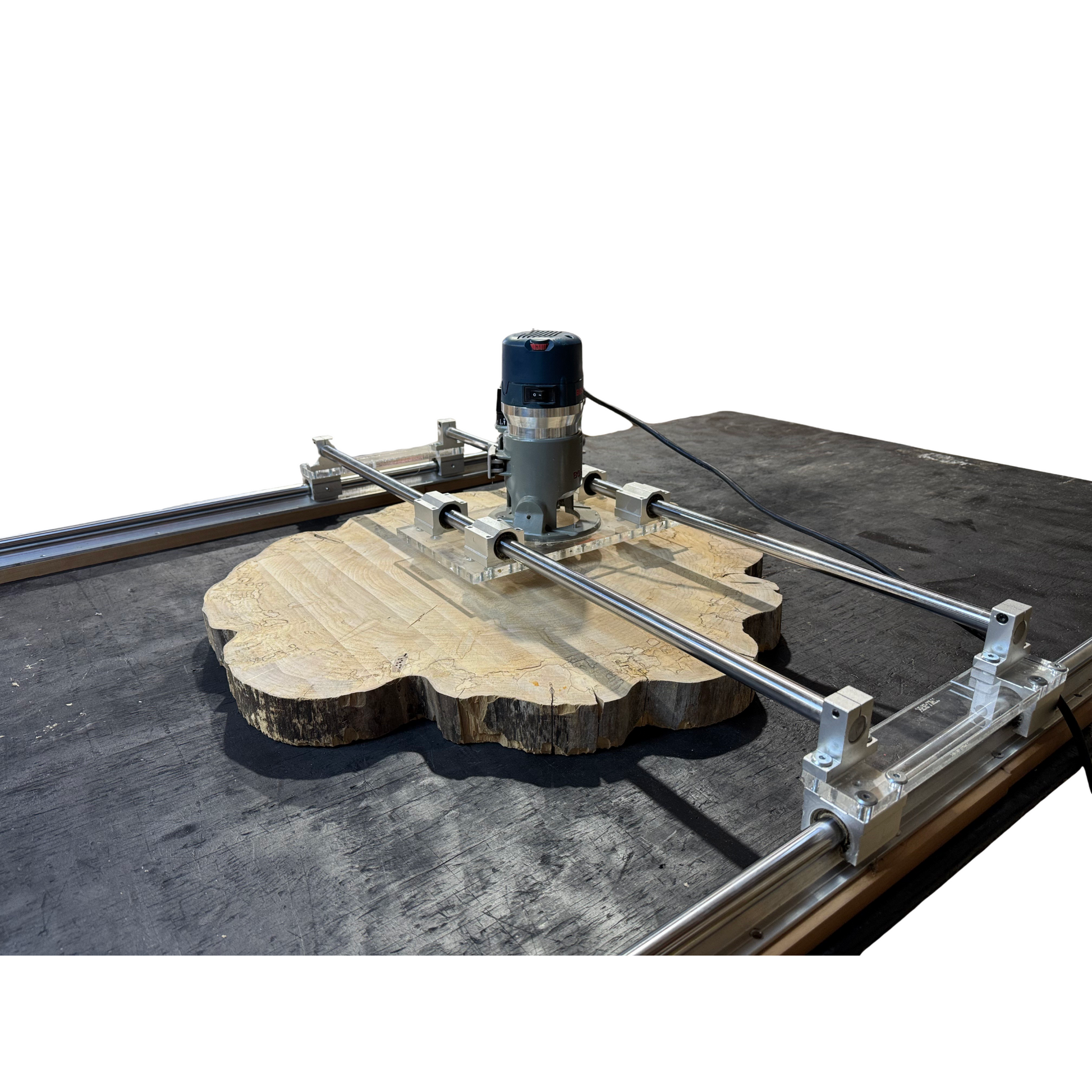

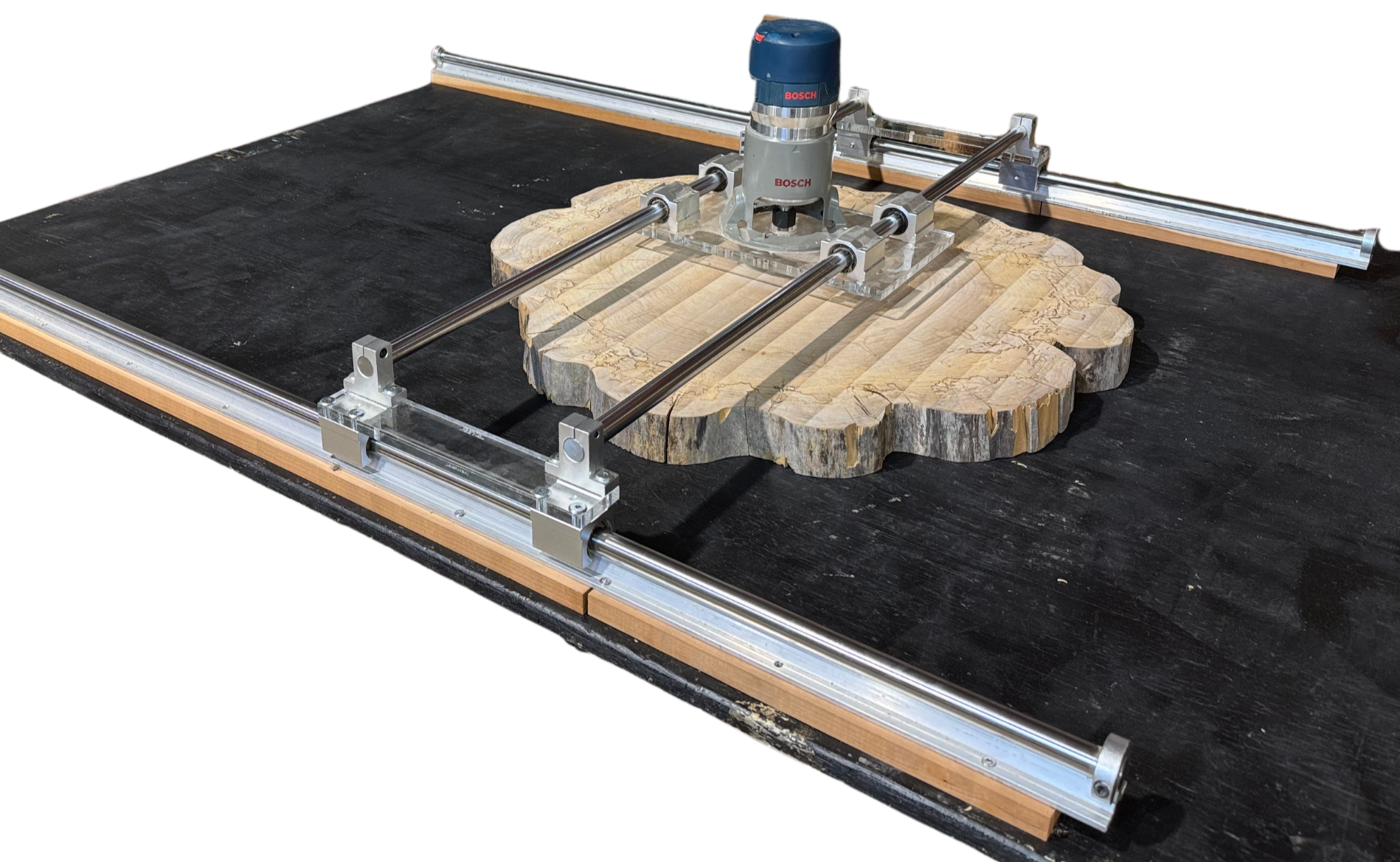

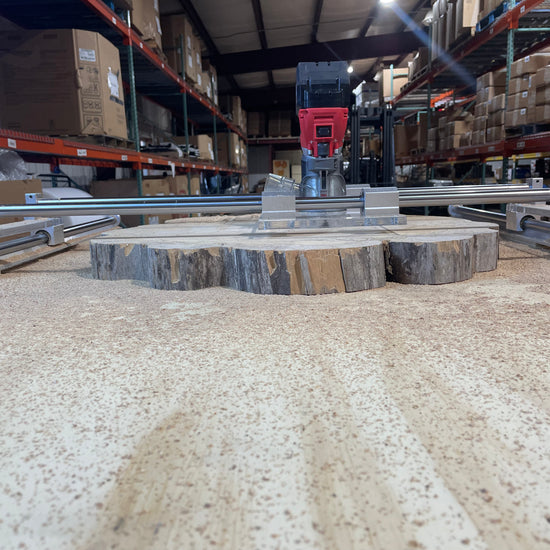

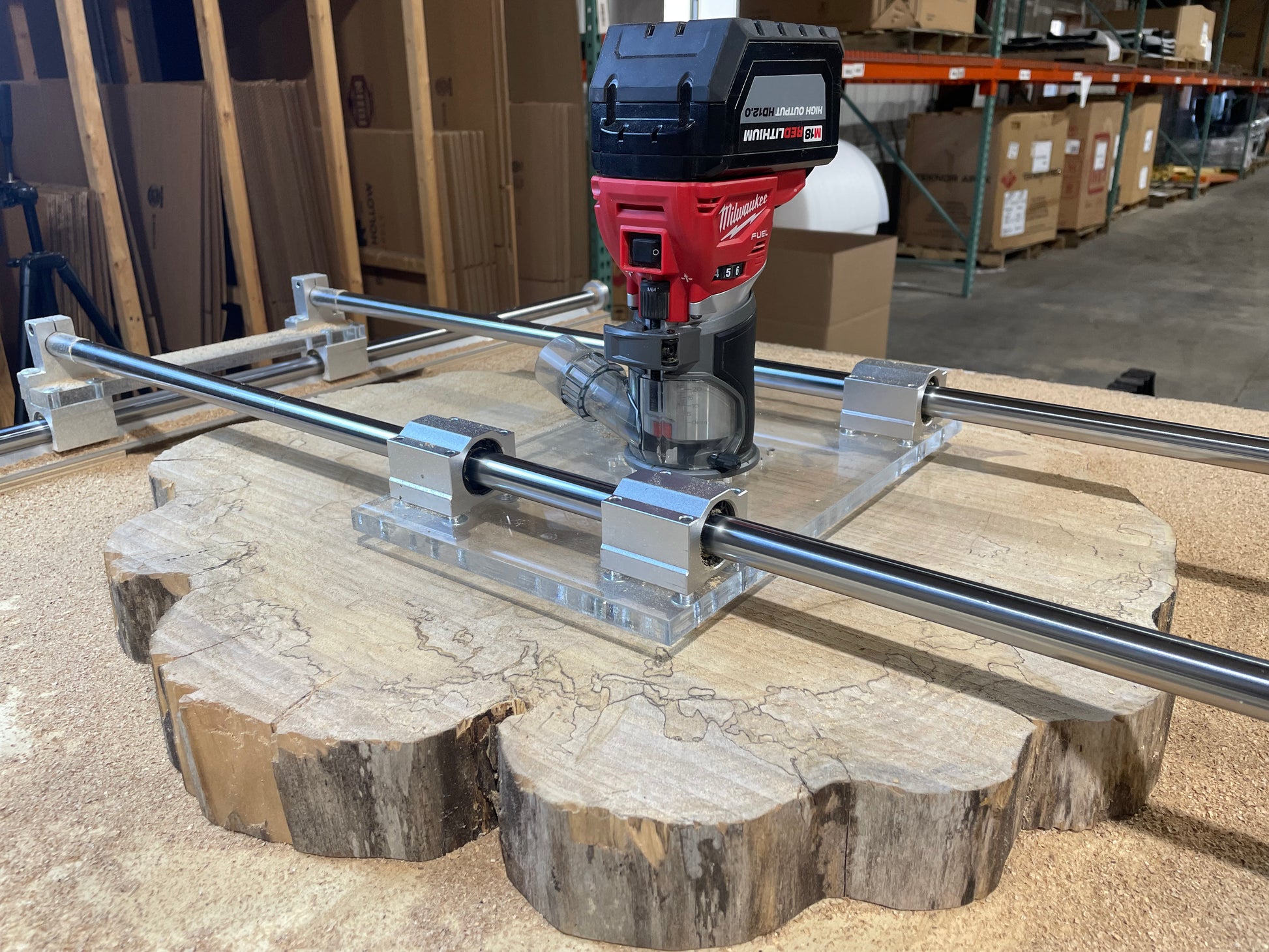

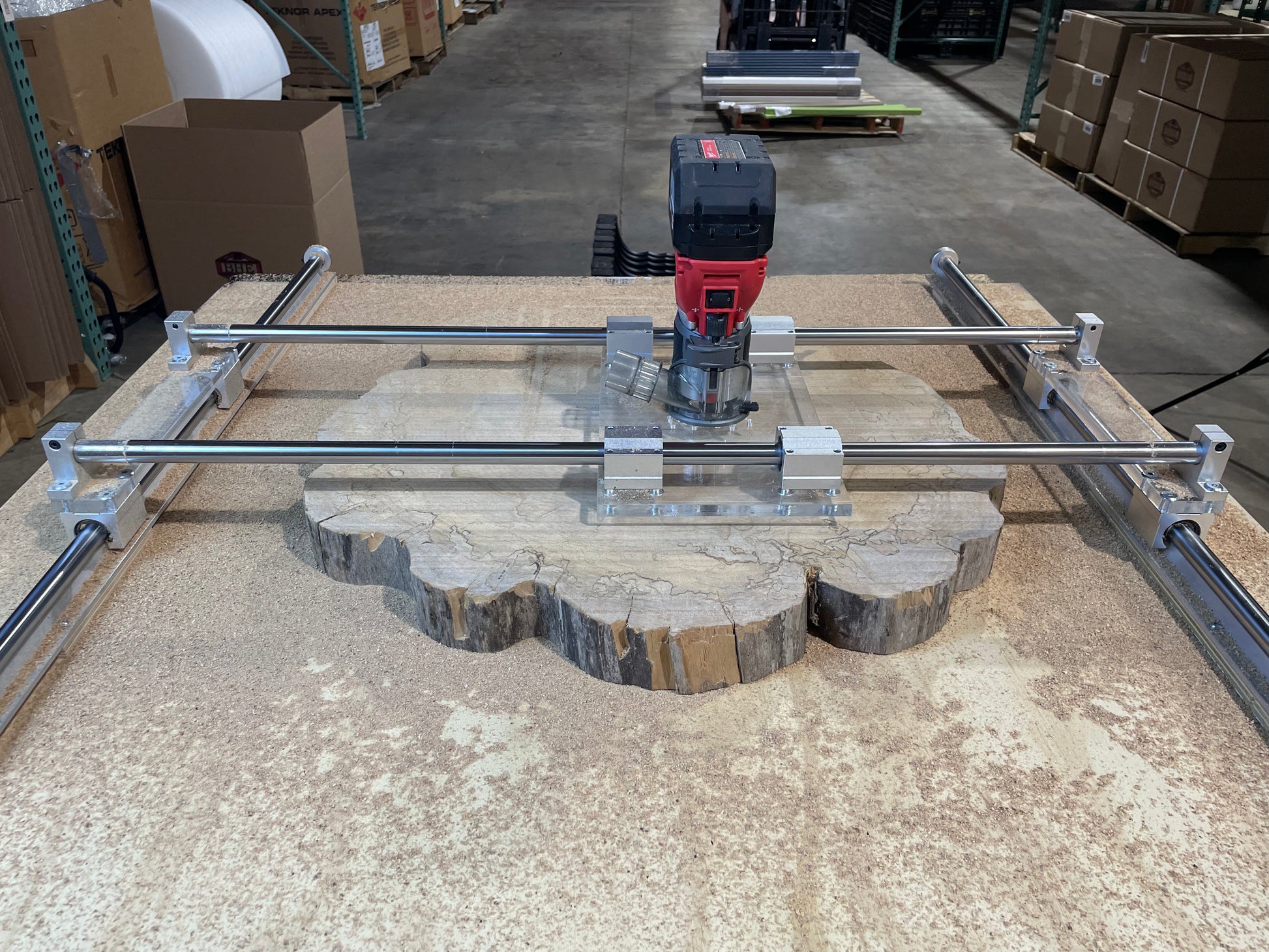

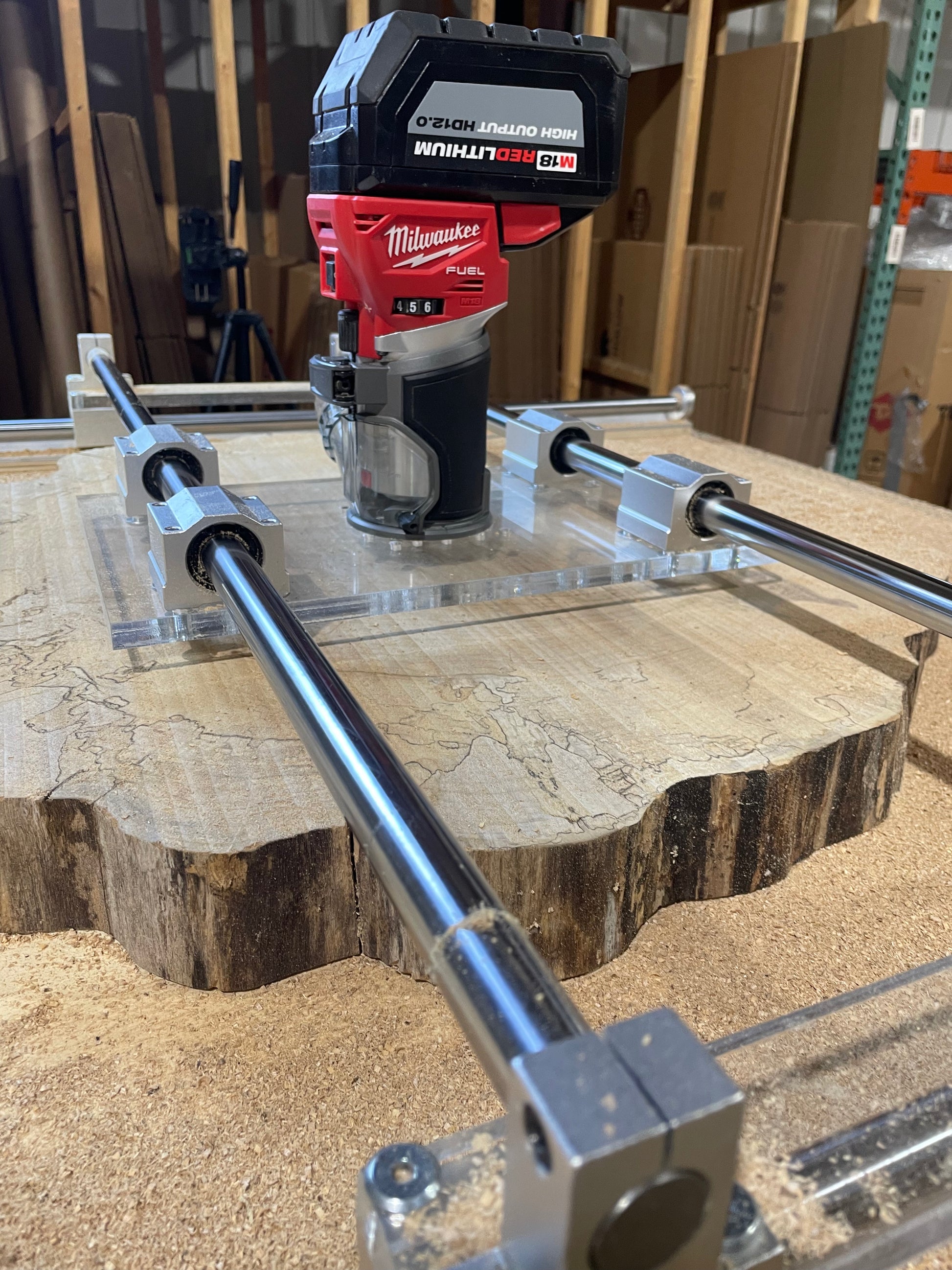

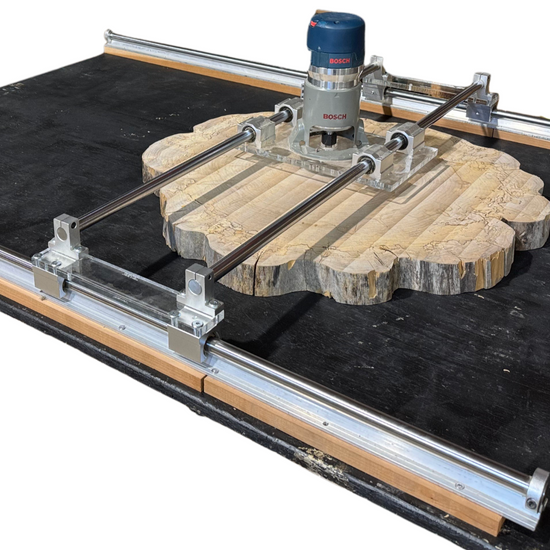

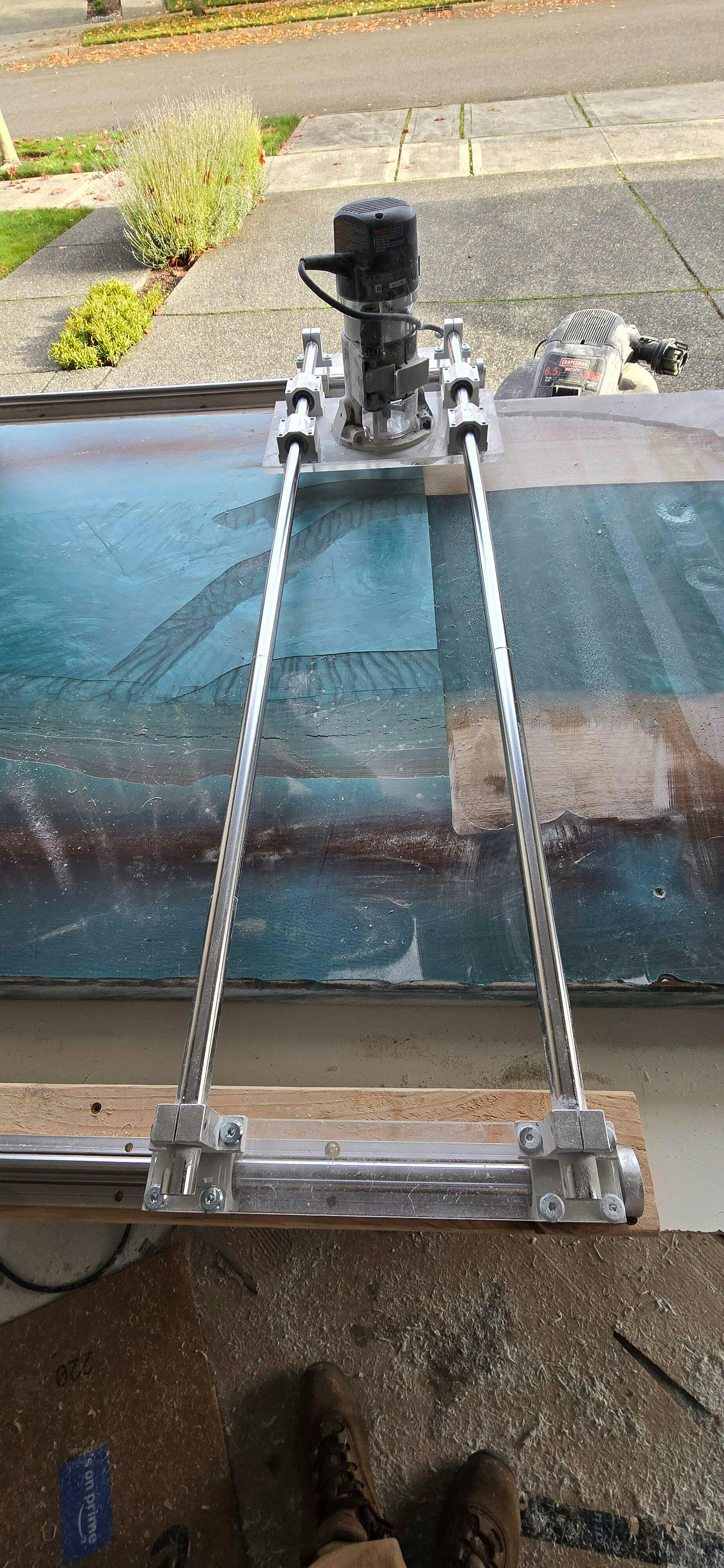

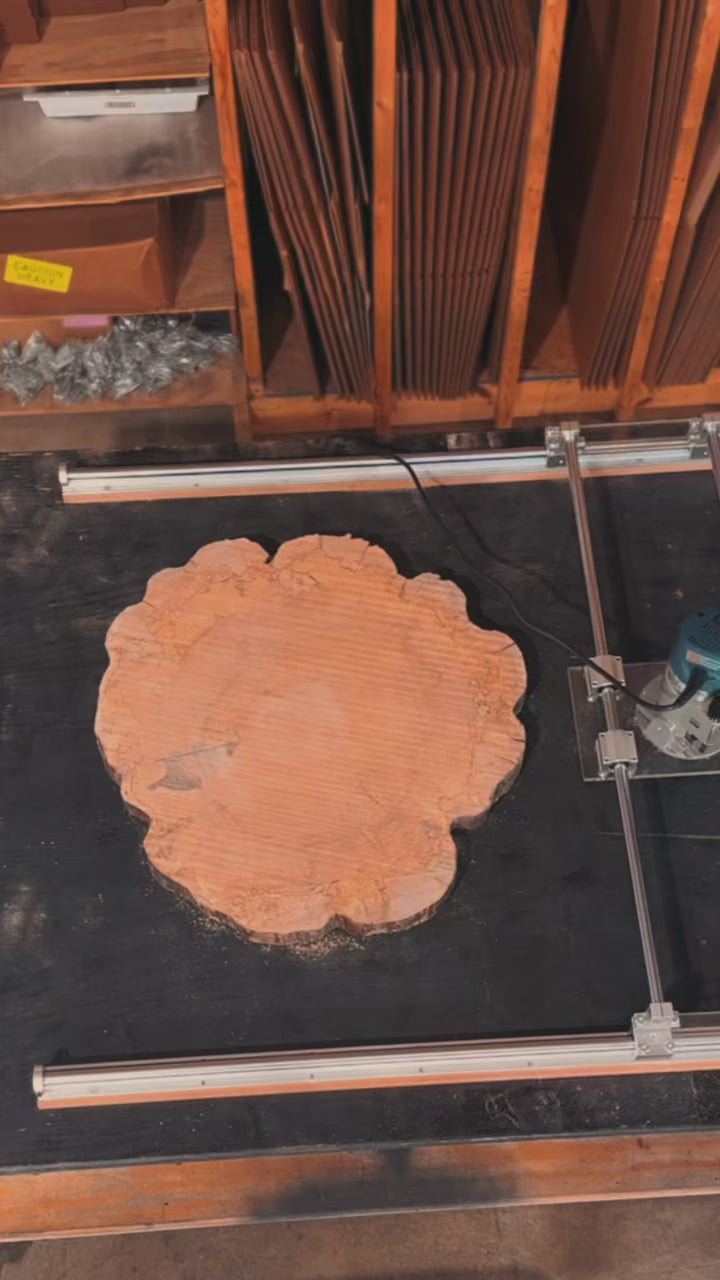

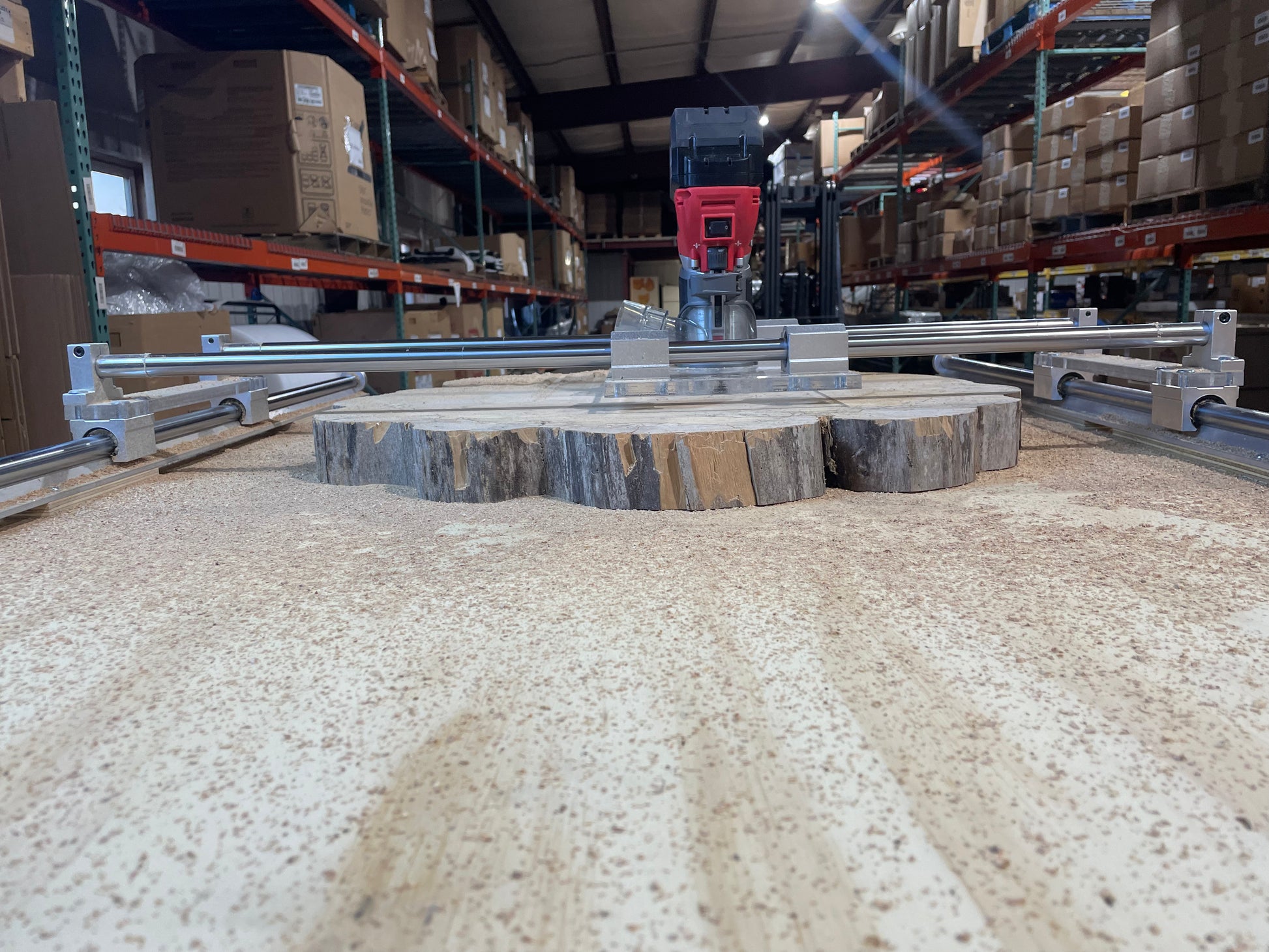

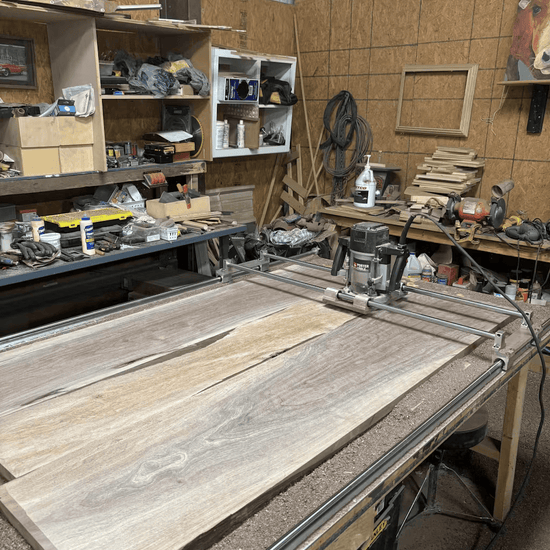

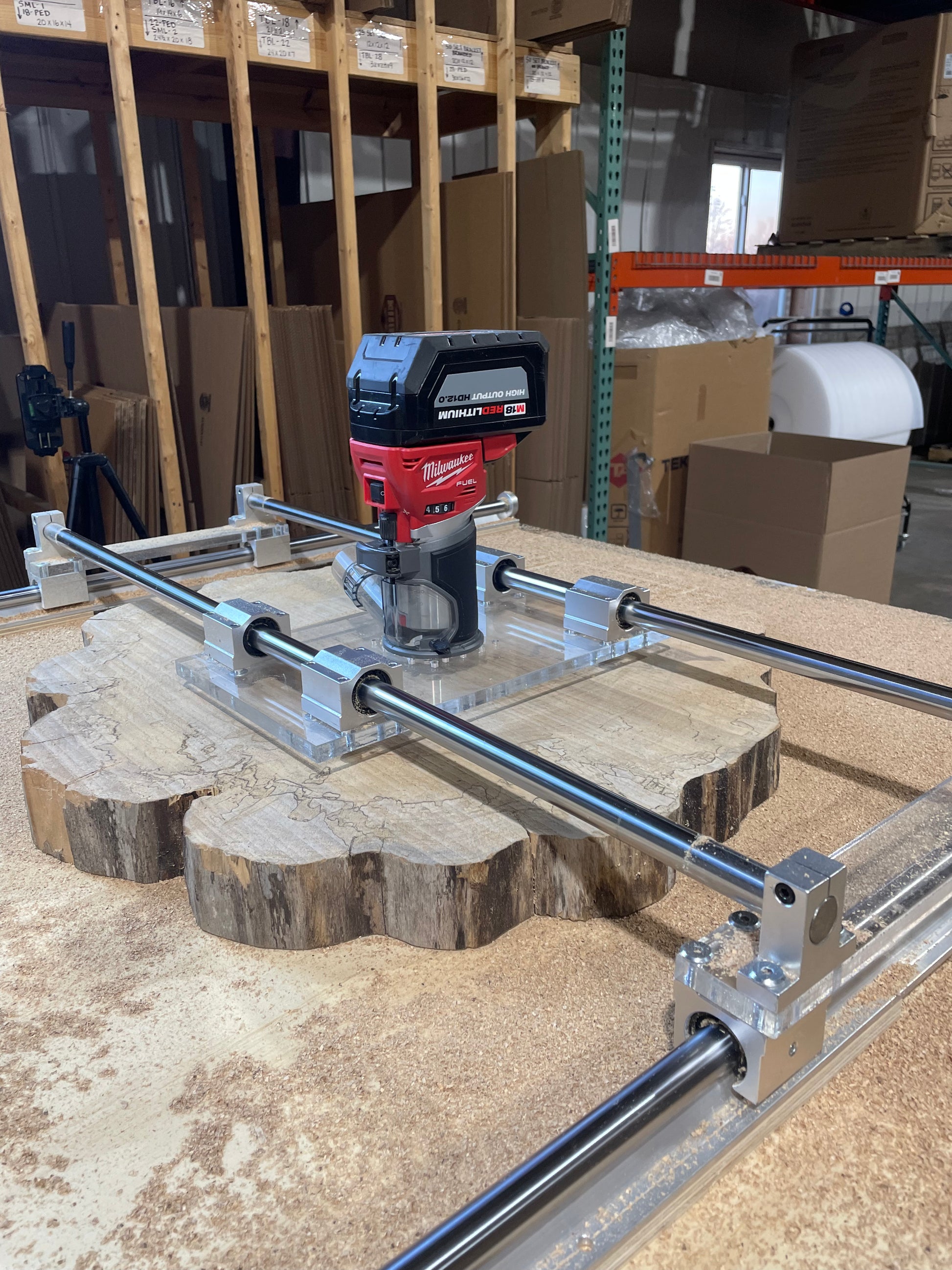

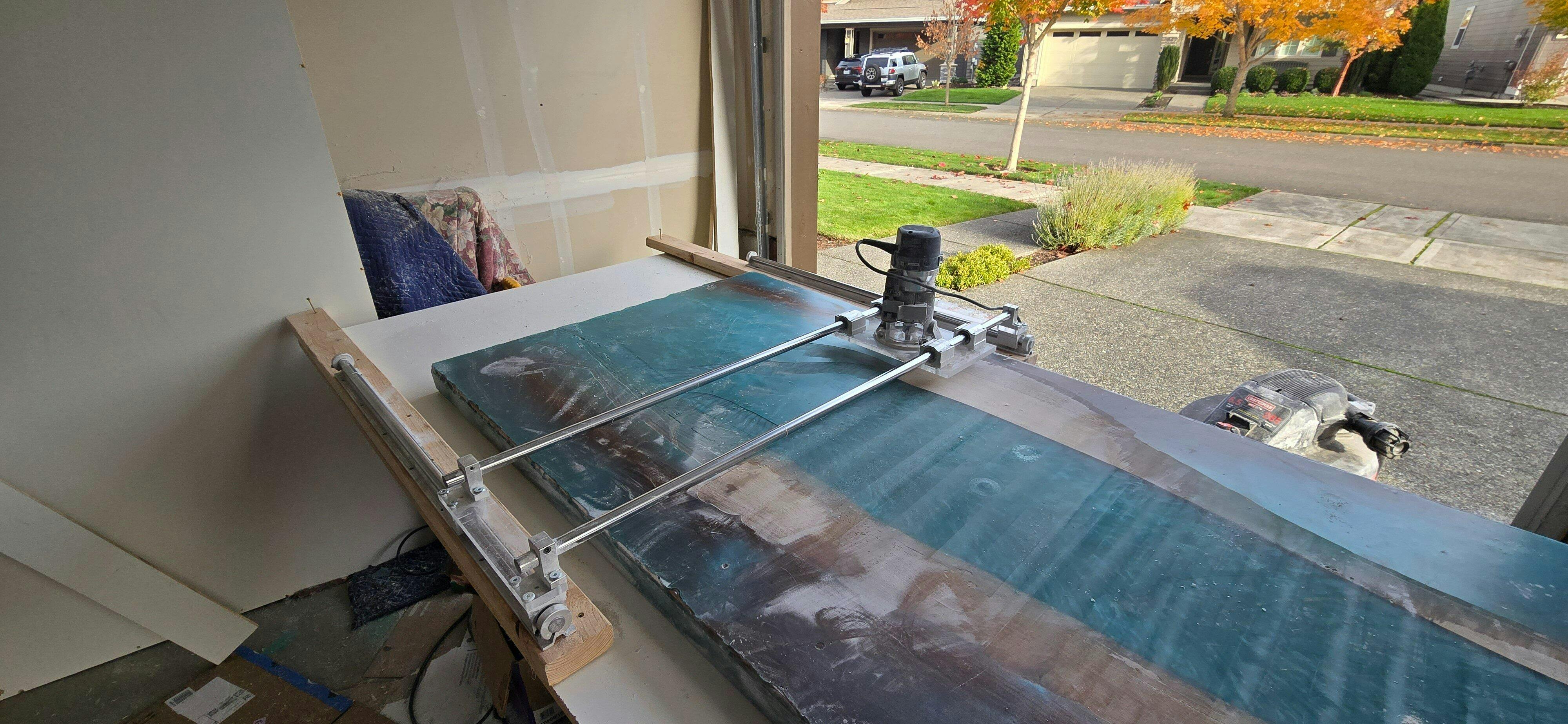

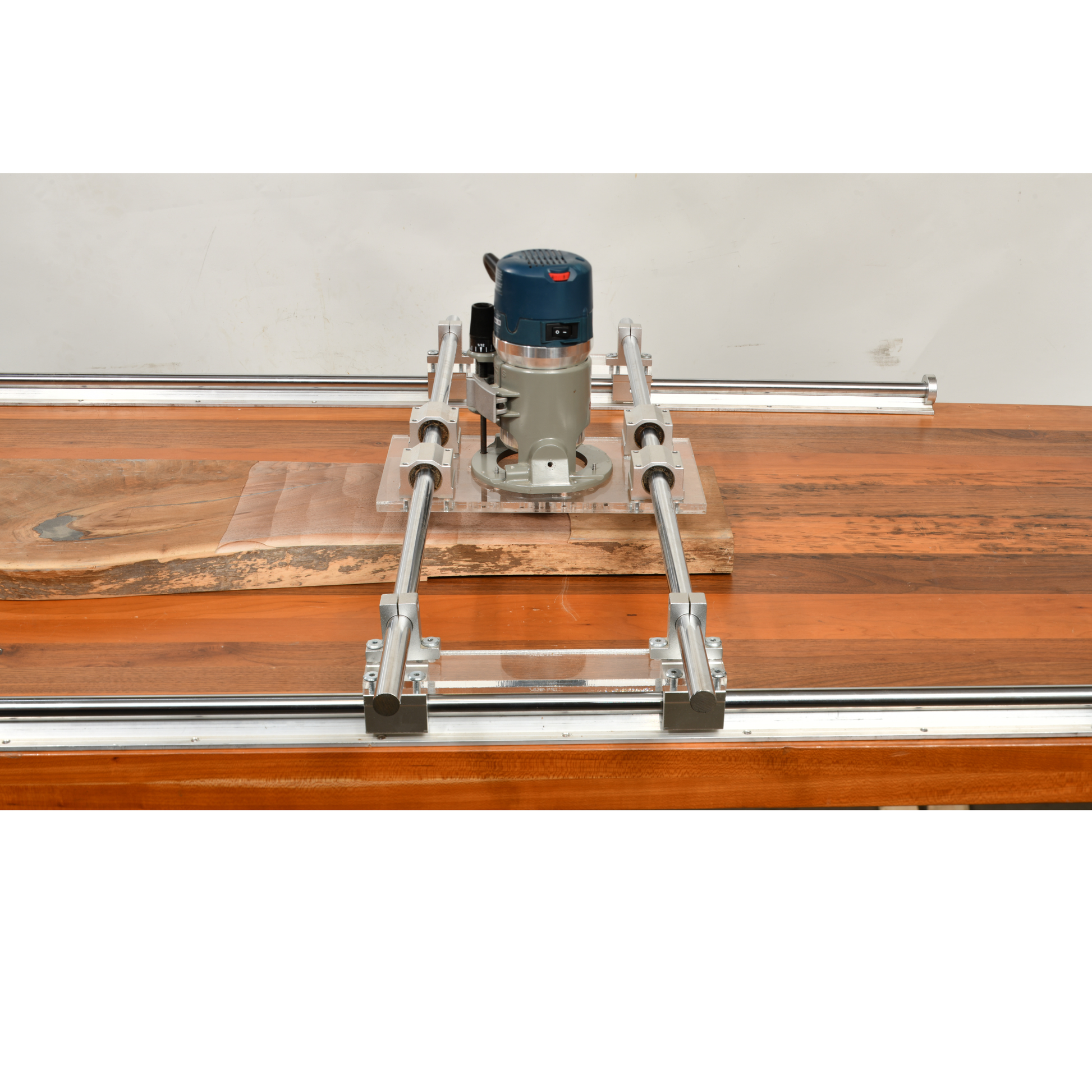

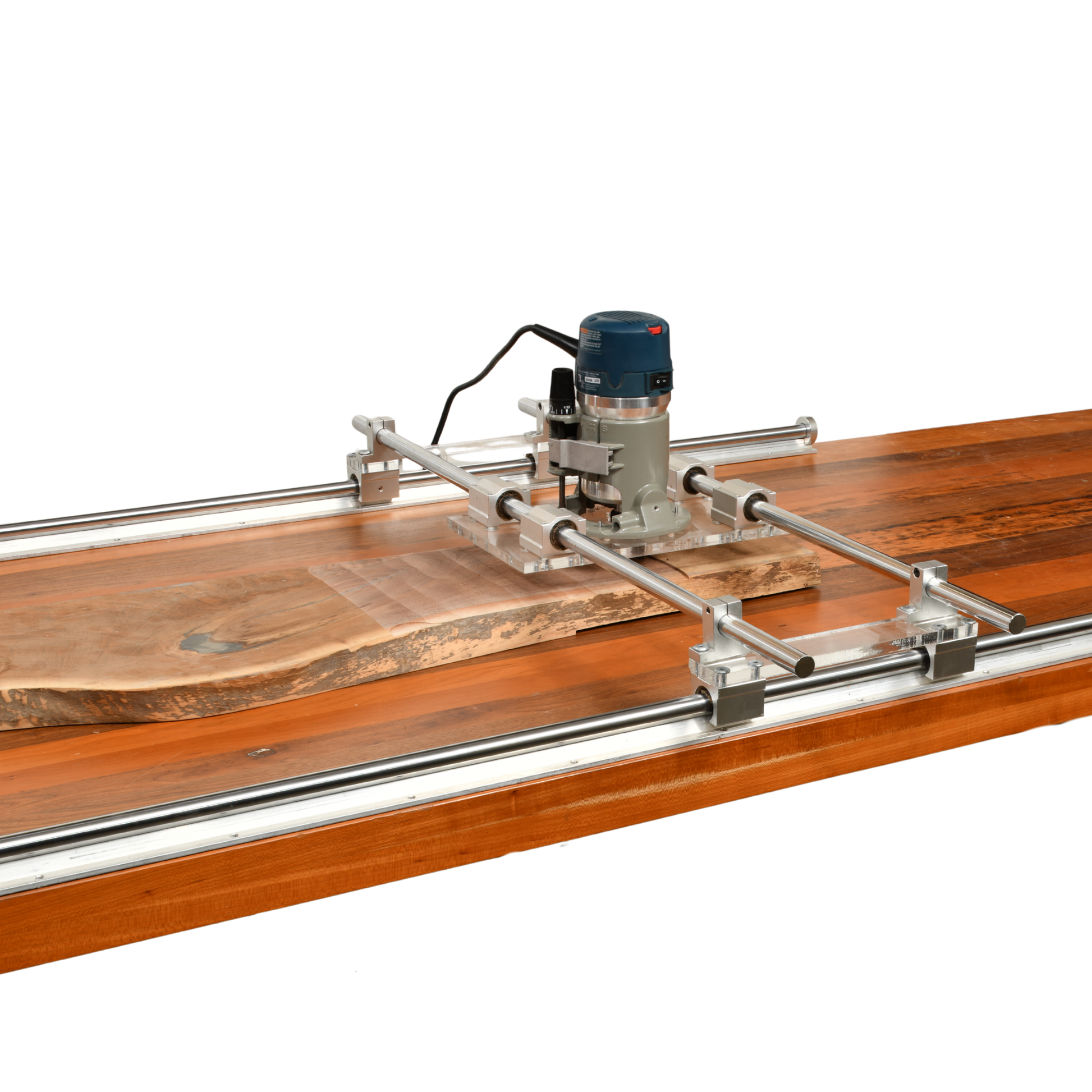

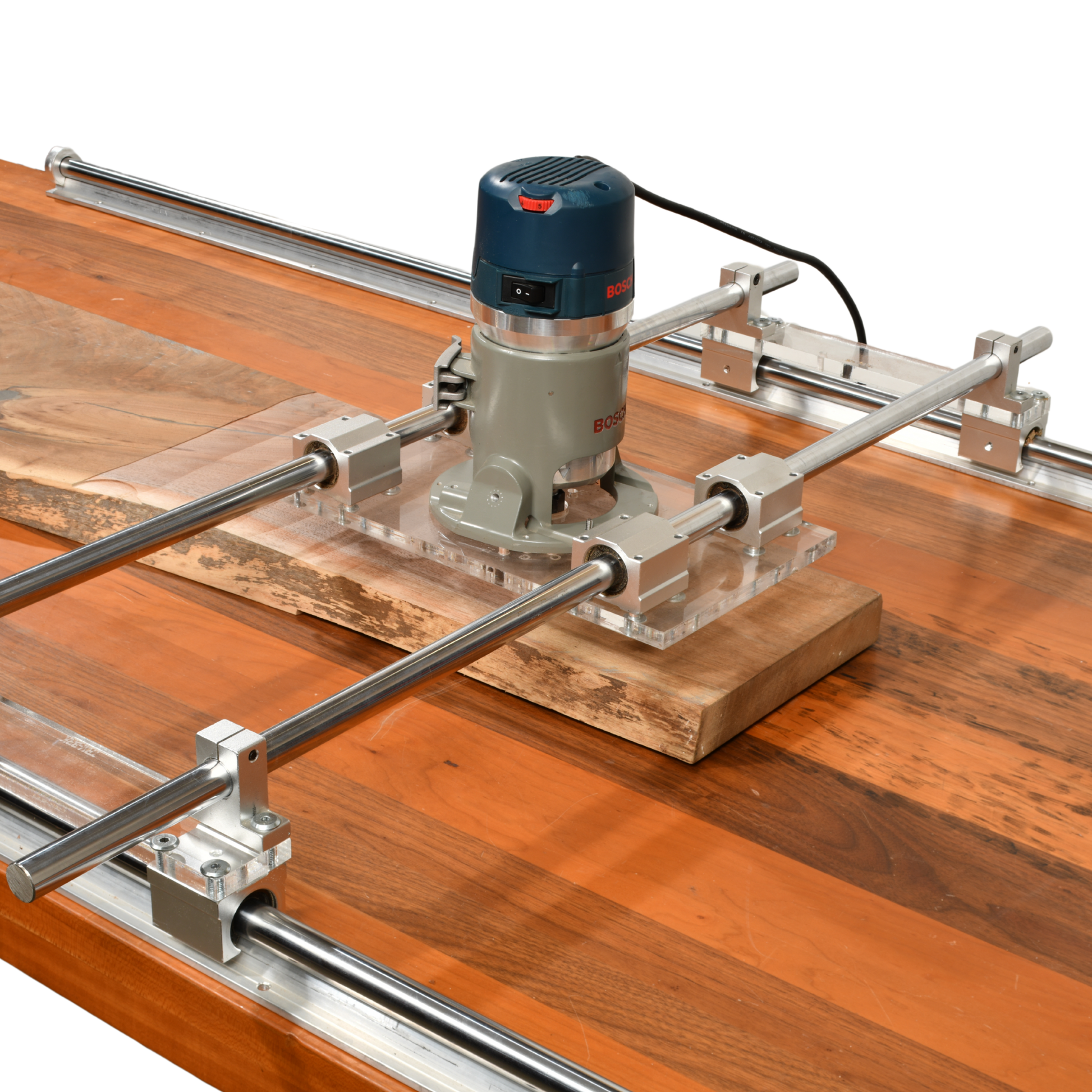

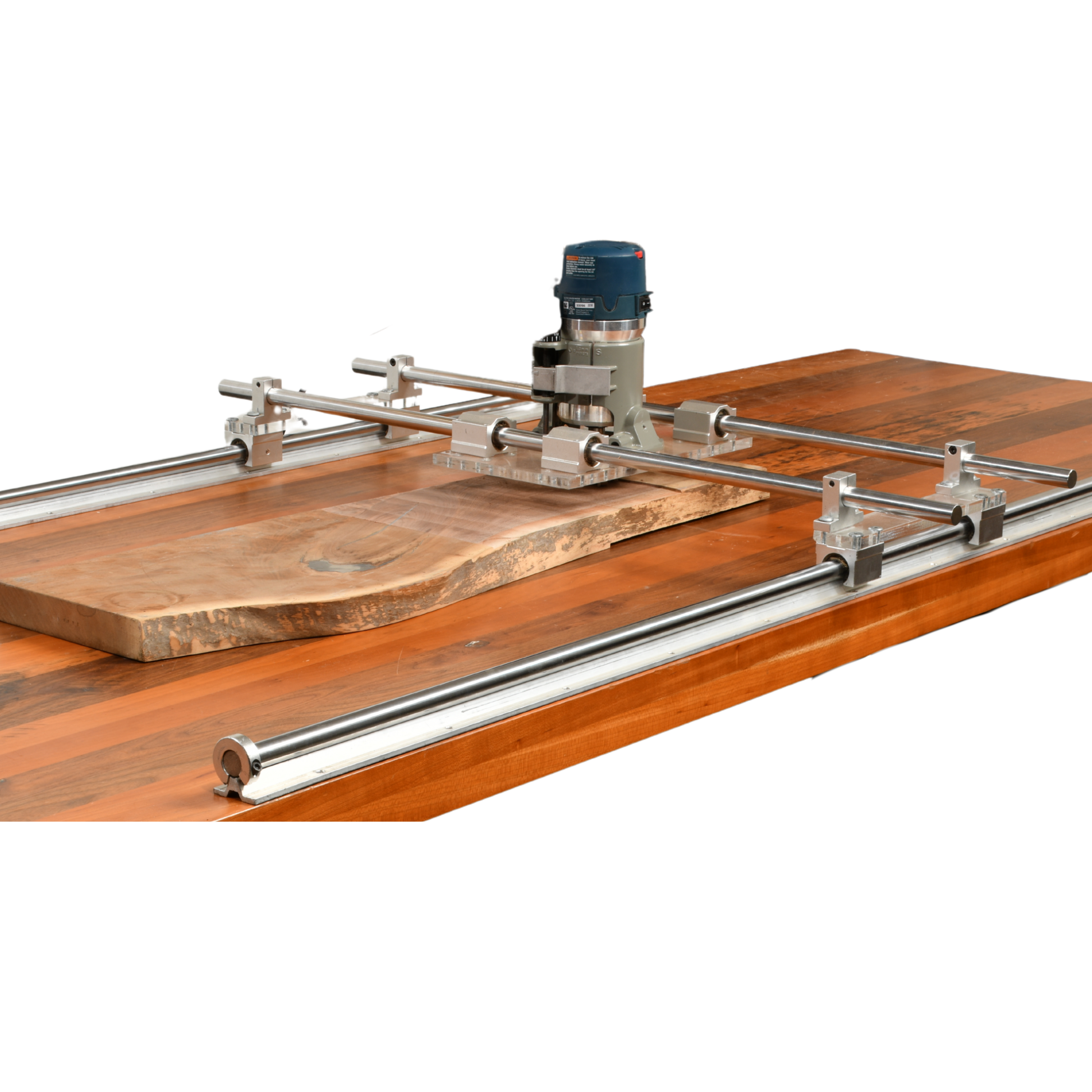

Slab Flattening Sled Router Jig (SlabTech)

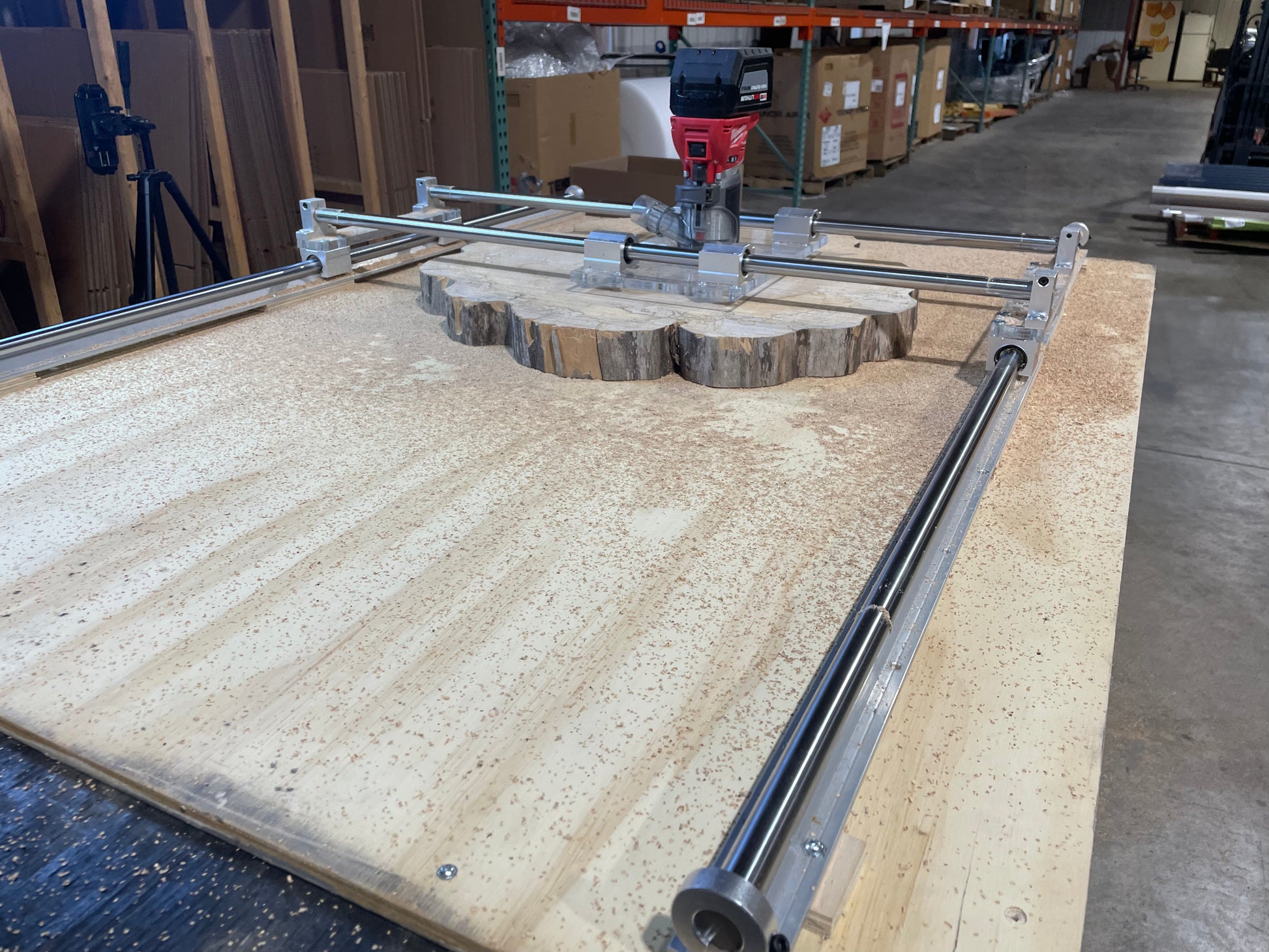

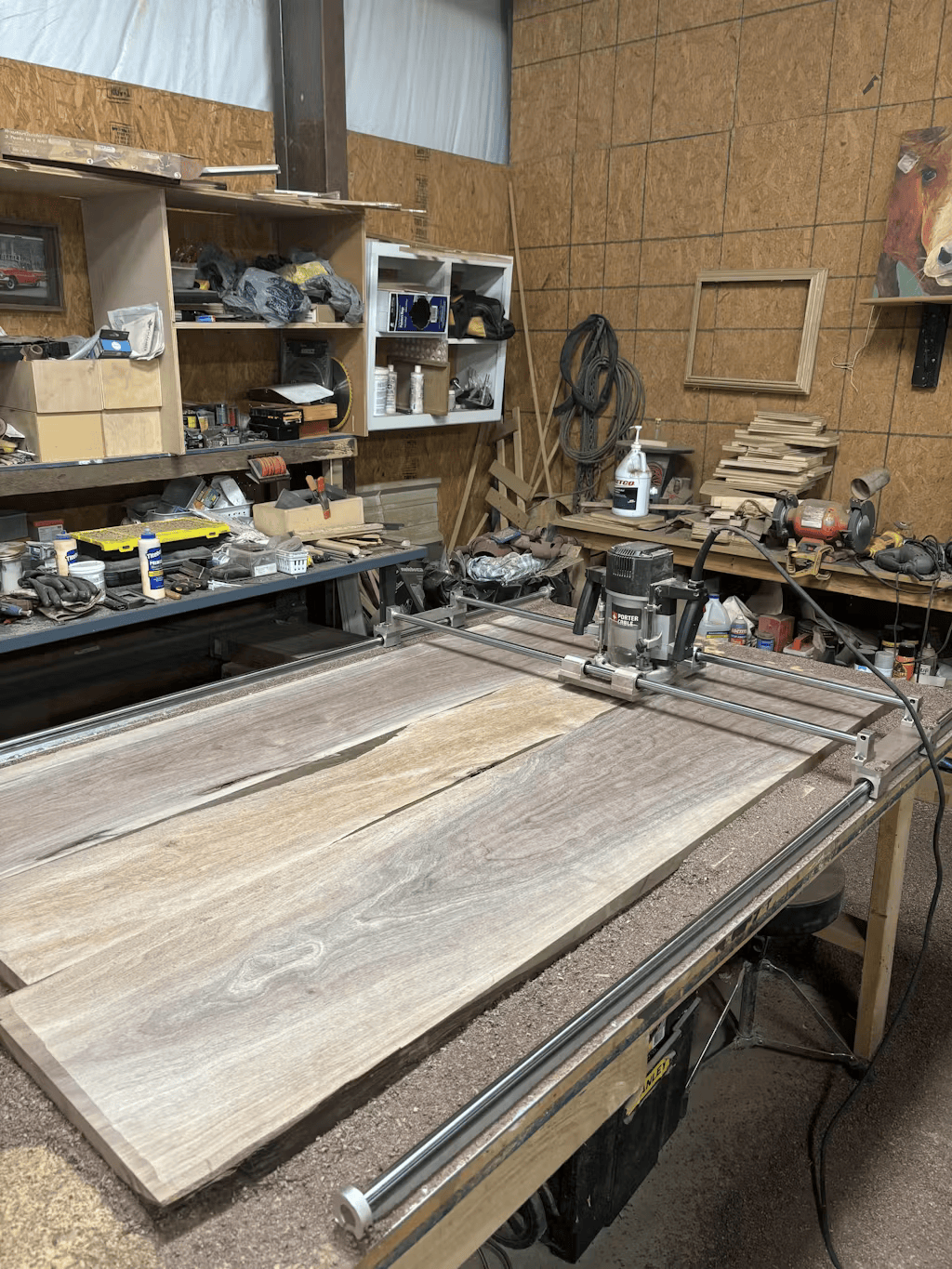

Flattening slabs just got so much easier! Setting the SlabTech slab flattening jig up takes only a couple of minutes and makes flattening your slabs a snap. Built with heavy duty 20MM rails this router sled is built to last. The bearing systems for the moving components make the whole process so smooth.

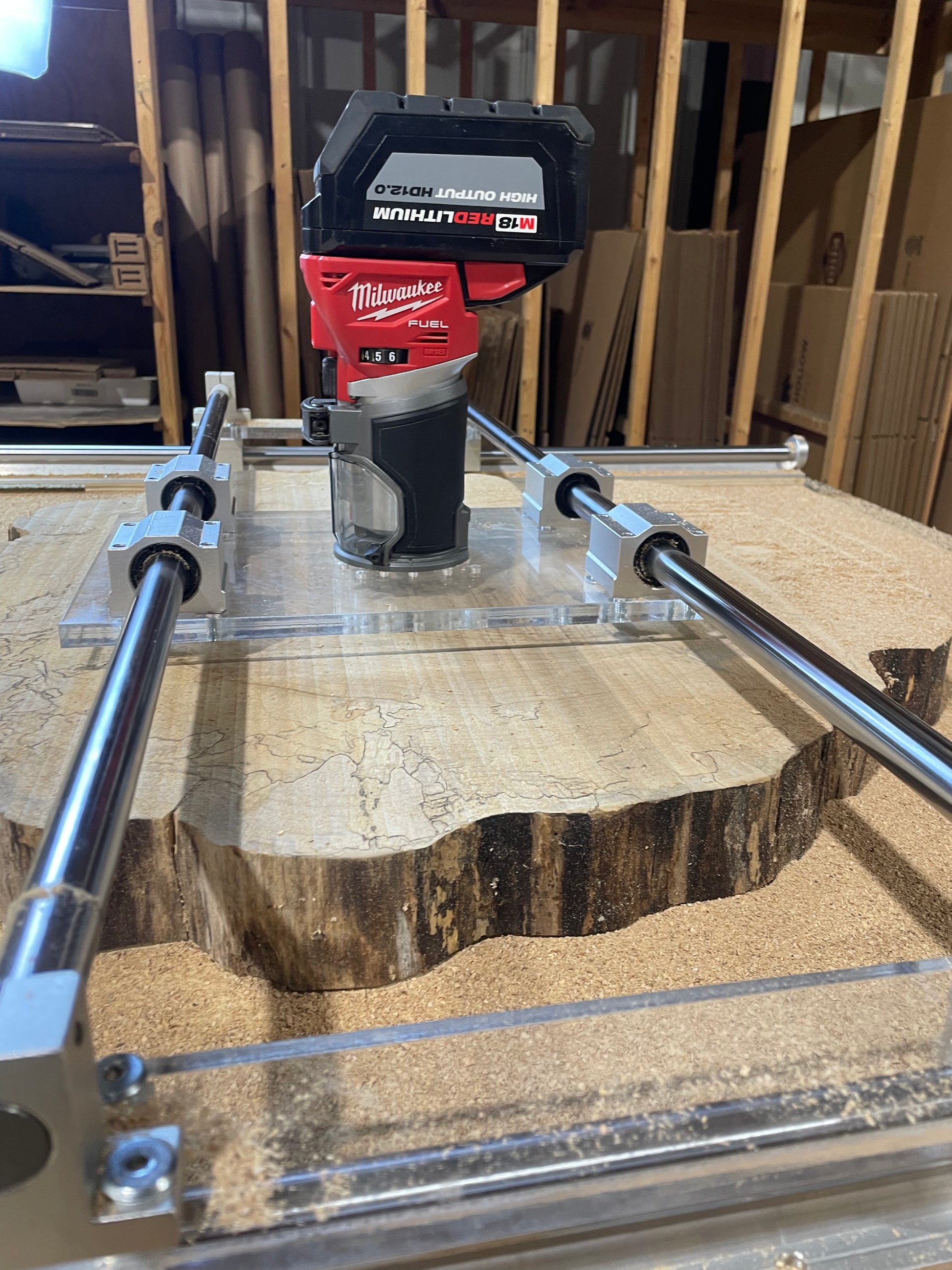

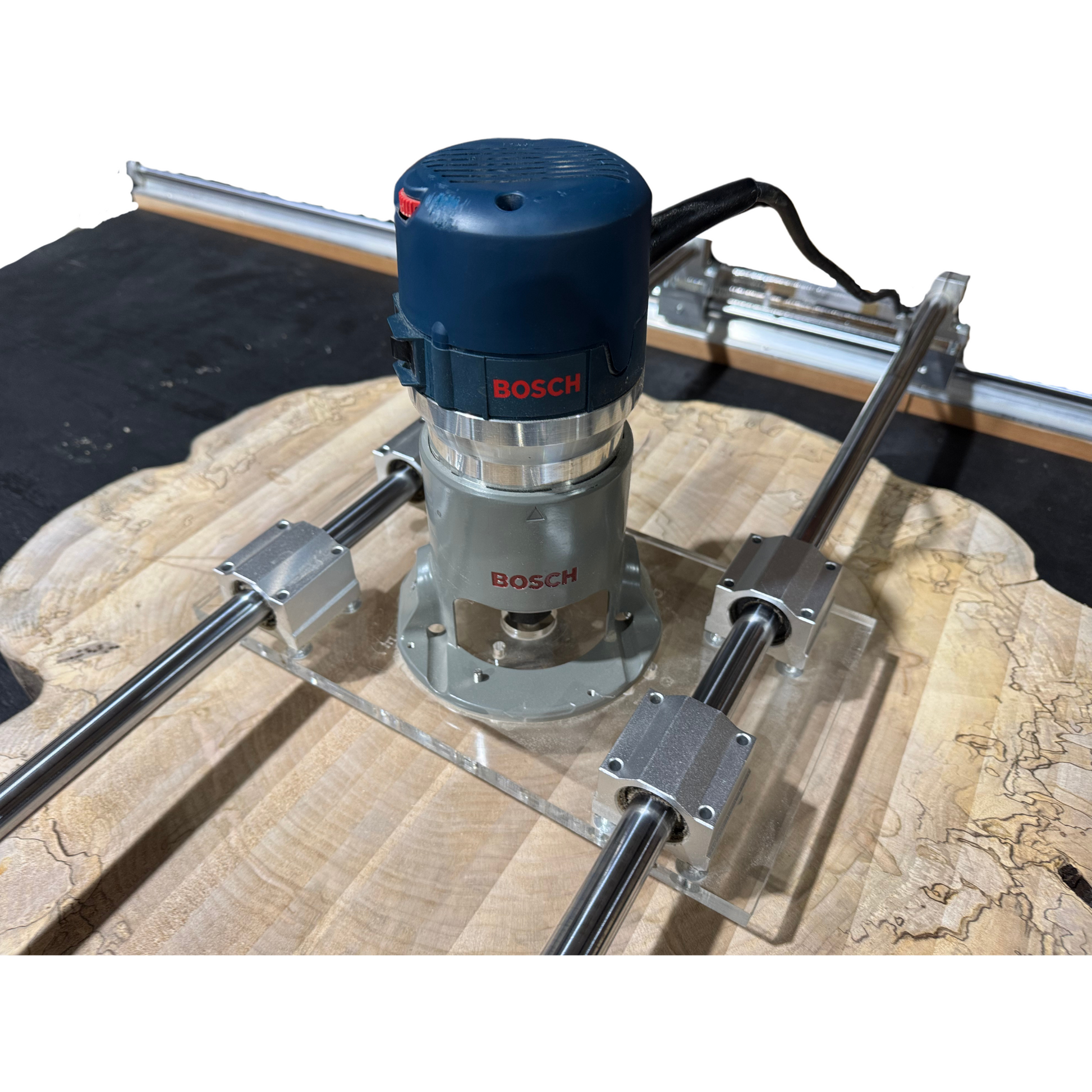

The router mounting plate and cross rail brackets are made with 1/2" thick clear acrylic which makes for excellent visibility.
Specifications
- Max Slab Thickness: Almost infinite if you use spacers to raise jig
- Minimum Slab Thickness: Varies depending on if you use a collet extension
Includes

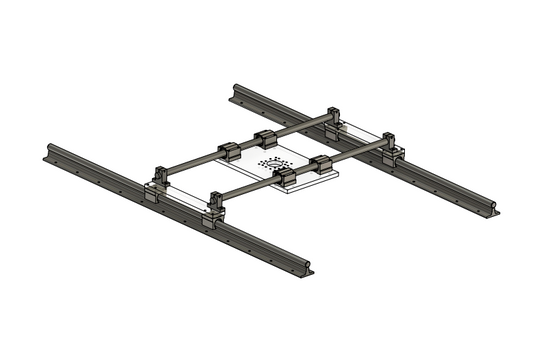

- 2x Base Rails (Select Size In Drop Down)
- 2x Top Rails (Select Size In Drop Down)
- 1x 1/2" Clear Acrylic Router Mounting Plate
- 2x 1/2" Clear Acrylic Rail Brackets
- 4x Stops (Keeps Top Rail From Falling Off)
- All Bolts To Assemble
Standard Router Mounting Plate Compatibility:
Fits:
-
Porter Cable (Series: A100, A7529, A690, A8529, A890)
-
Ryobi (R1631K)
-
Makita (RF1101)
-
Bosch (1617 series (fixed base Only), 1618, 1619, 1619 EVS)
-
Hitachi (M8V, M-12VC, TR12)
-
DeWALT (DW621, DW616 series, DW625, DW618)
-
Craftsman (315 275 000, 315 175 040, 315 175 050, 315 175 060,)
-
& more
Blank Router Mounting Plate:
Use this to drill a custom hole pattern for routers that won't fit standard hole pattern routers.
Note We still drill the mounting points for everything except the router mounting point.
Trim Router Mounting Plate Compatibility:
Fits:
- Porter Cable 450
- Dewalt DWP611
- Milwaukee 2723-20
- Bosch Colt PR20EVS
- Makita RT0701C
- Ridgid R2401
- Ryobi P601
- & more
Checkout our slab flattening router bits.
Watch The Assembly Video below
